2 MOA dot
An illuminated 2 MOA dot provides the aiming reference.
RED DOT SIGHT
RAPID 1
Red dot sight
A clear reference.
An uncluttered view.
RAPID 1 pairs an illuminated 2 MOA aiming dot with adjustable brightness and motion activation in an aluminium housing.
As low as $499.00
KECK · CREATING VALUE FOR USERSRAPID 1
1×MAGNIFICATION
2 MOADOT SIZE
MOTIONACTIVATION
IP67INGRESS PROTECTION
01 / PRODUCT OVERVIEW
A defined reference.
A considered design.
RAPID 1 pairs an illuminated 2 MOA aiming dot with adjustable brightness and motion activation in an aluminium housing.
The dot, brightness controls and housing specifications are presented together for a clear understanding of this model.
Discuss this model02 / KEY FEATURES
RAPID 1
The defining features.
Brightness selection
Ten daylight settings and two night-vision settings provide a choice of dot brightness.
Motion activation
Motion activation wakes the sight from its sleep state when movement is detected.
6061-T6 aluminium
The aluminium housing is specified with IP67 ingress protection.
03 / DESIGN DETAILS
DOT & BRIGHTNESS
A simple visual reference.
The 1× optical format presents a 2 MOA illuminated dot. Brightness selection includes ten daylight levels and two night-vision levels, as listed for this model.
- Dot size
- 2MOA
- Brightness settings
- 2(NV)+10
- Click value
- 1 /2MOA
BODY & POWER
Practical features, clearly specified.
Motion activation is combined with a 6061-T6 aluminium housing. Battery duration depends on the brightness setting and operating conditions; use the model-specific figure below for comparison.
- Battery life
- Up to 400 hours on highest setting. Up to 50,000 hours on lower settings.
- Ingress protection
- IP67
- Operating temperature
- -30°C to +60°C
04 / TECHNICAL SPECIFICATIONS
Every detail.
At a glance.
RAPID 1
Red dot sight
Optics & viewing
| Magnification | 1× |
|---|---|
| Exit Pupil Dia | 22 |
| Dot size | 2MOA |
Reticle & controls
| Parallax setting | 100YDS / 1' |
|---|---|
| Click value | 1 /2MOA |
| Windage Elevation (Up Down) | 〉140MOA |
| Windage Elevation (Right Left) | 〉140MOA |
| Brightness settings | 2(NV)+10 |
| Motion activation | Yes |
Construction & environment
| Housing Material | Aircraft Grade Aluminum 6061T6 |
|---|---|
| Ingress protection | IP67 |
| Shock resistance | 1200g |
| Operating temperature | -30°C to +60°C |
Power & connectivity
| Battery life | Up to 400 hours on highest setting. Up to 50,000 hours on lower settings. |
|---|

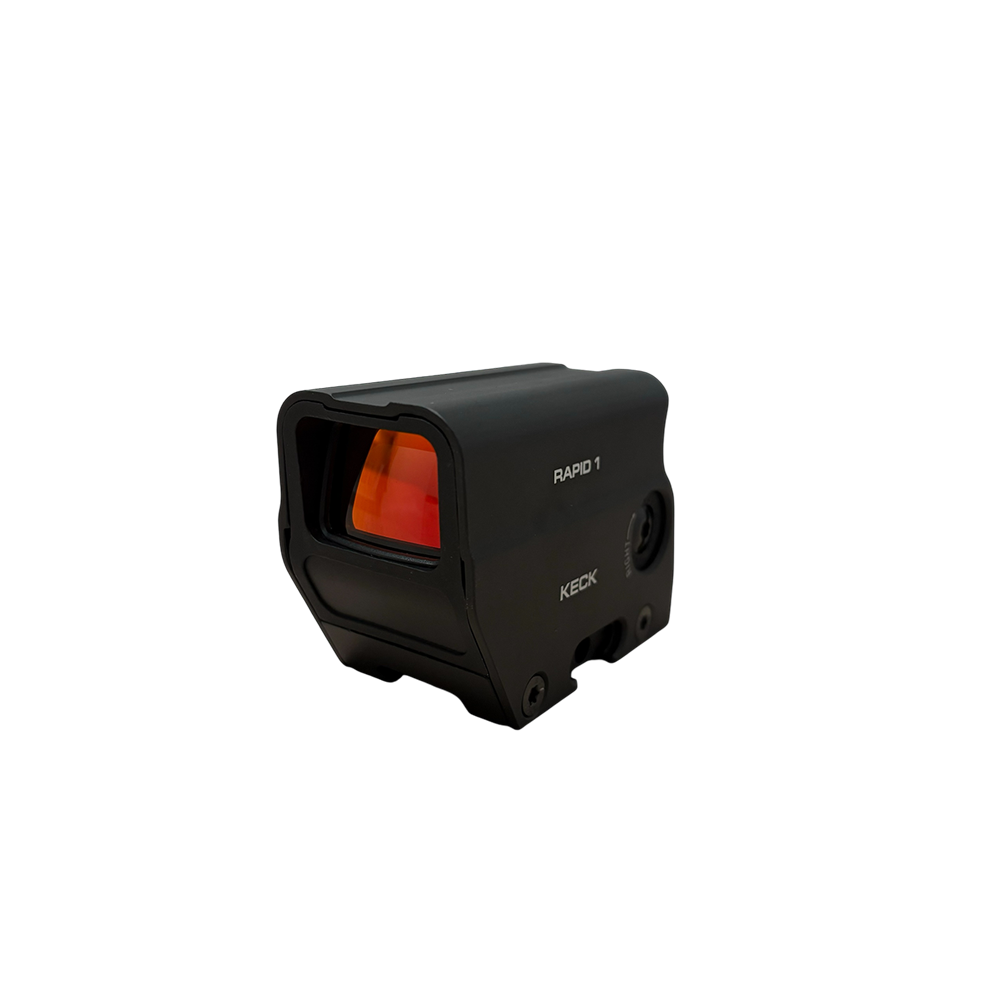

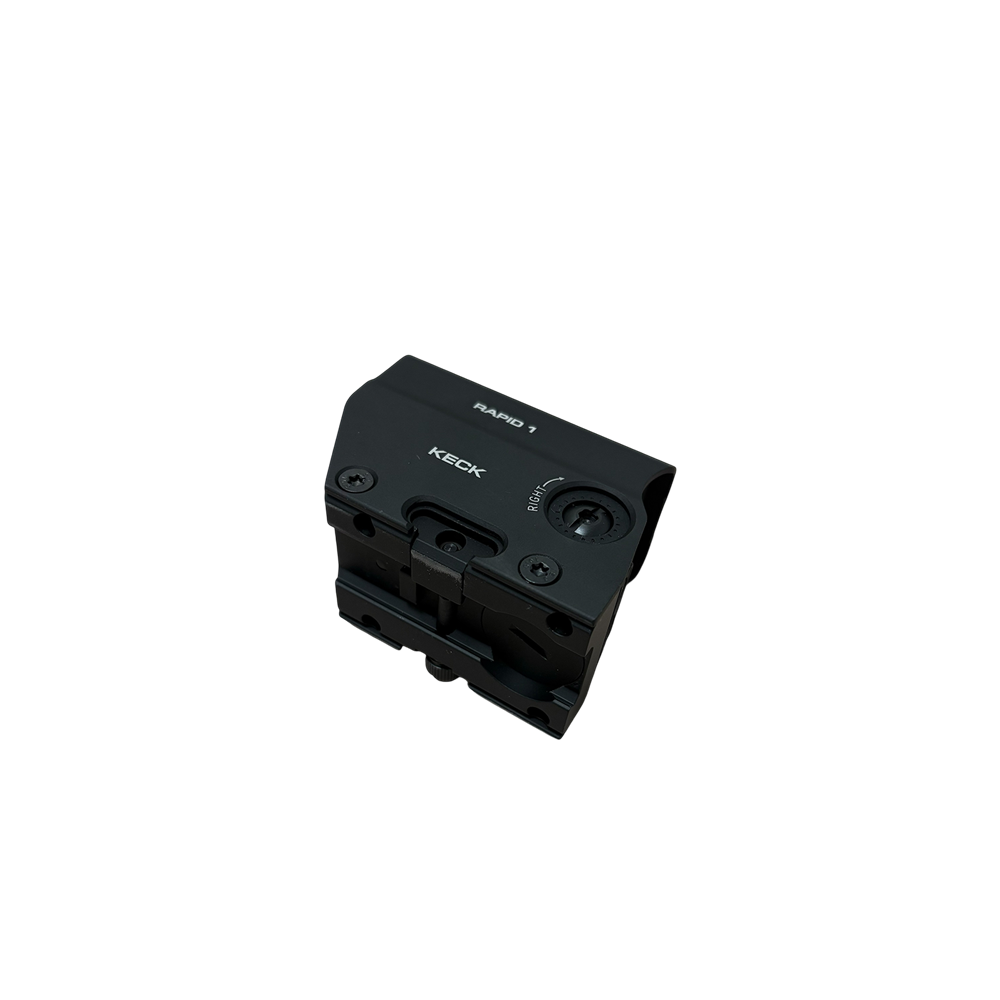

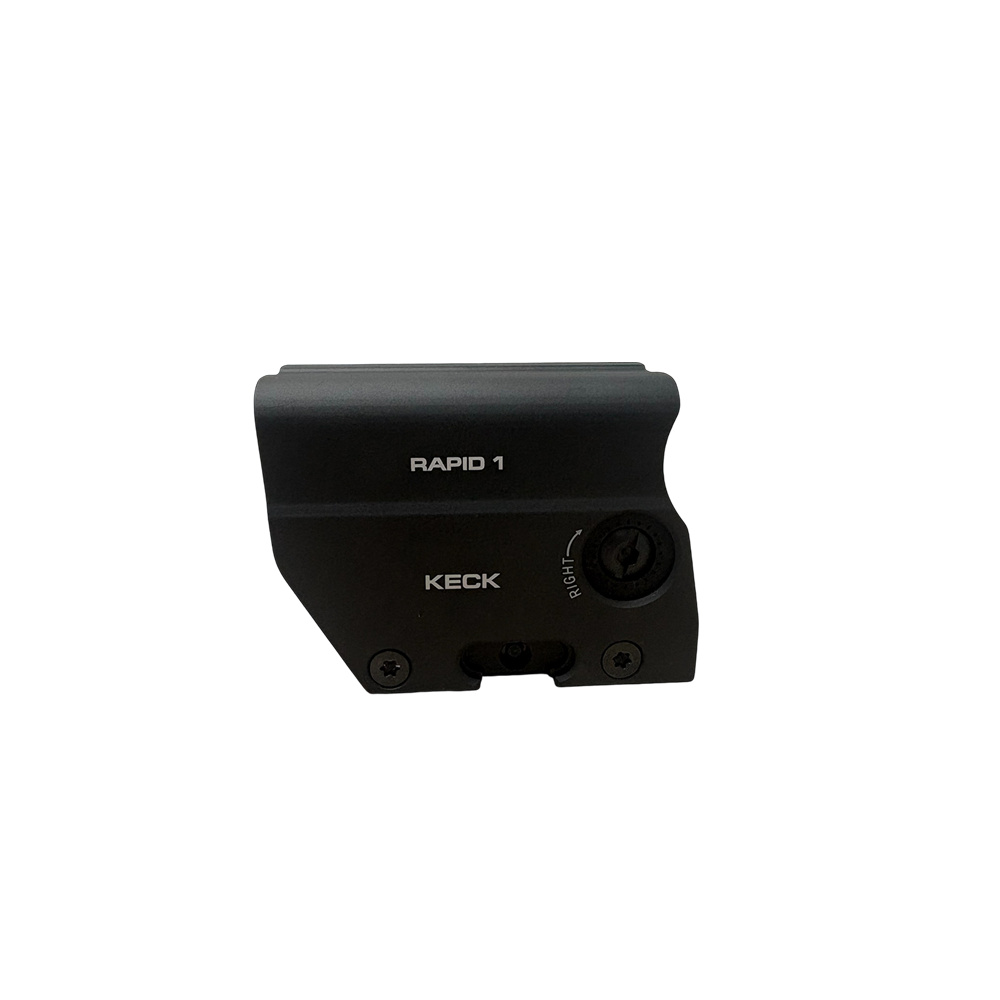

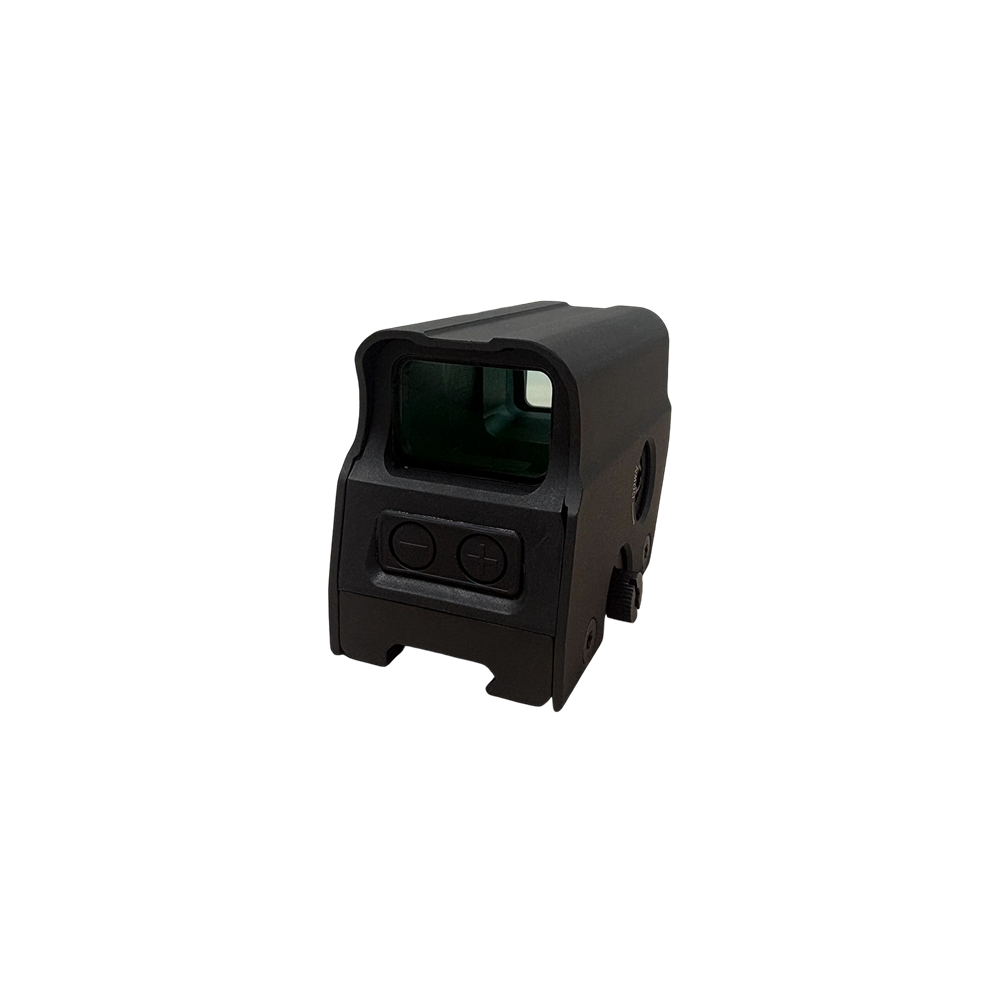

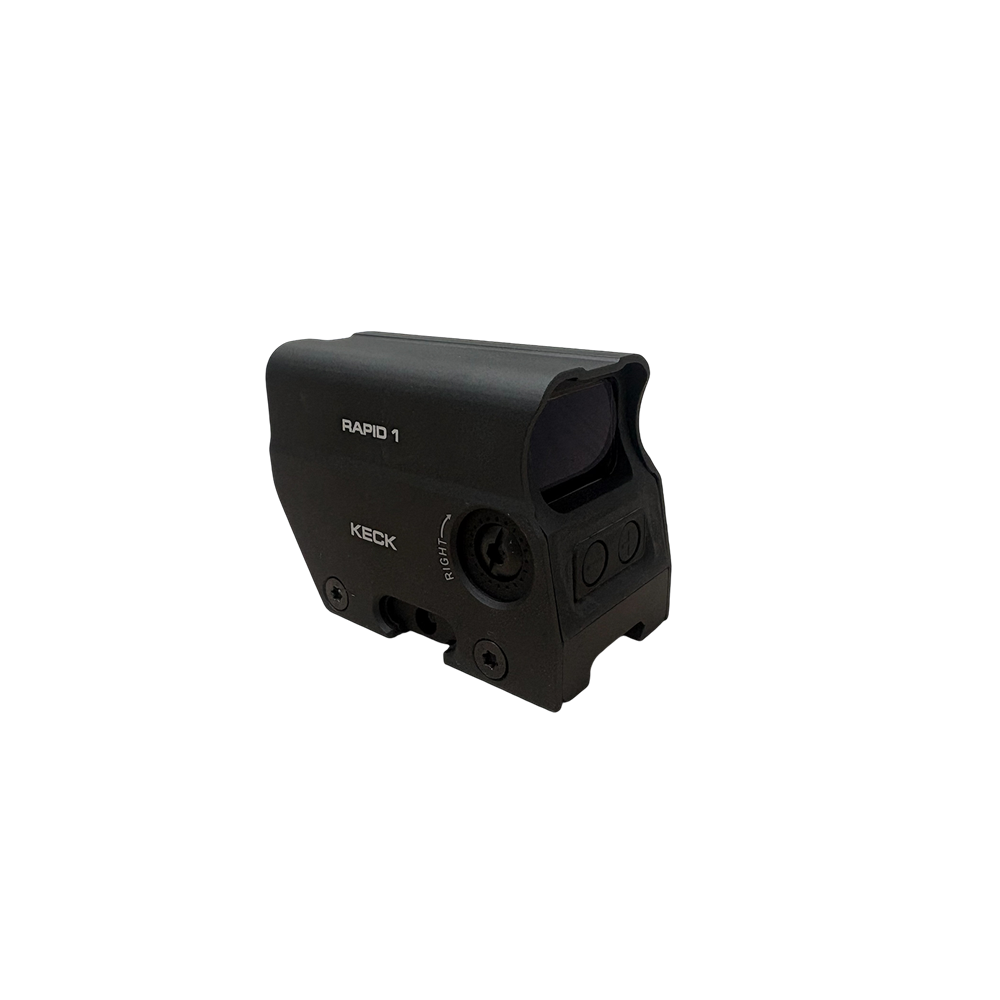

PRODUCT GALLERY
A closer look.
