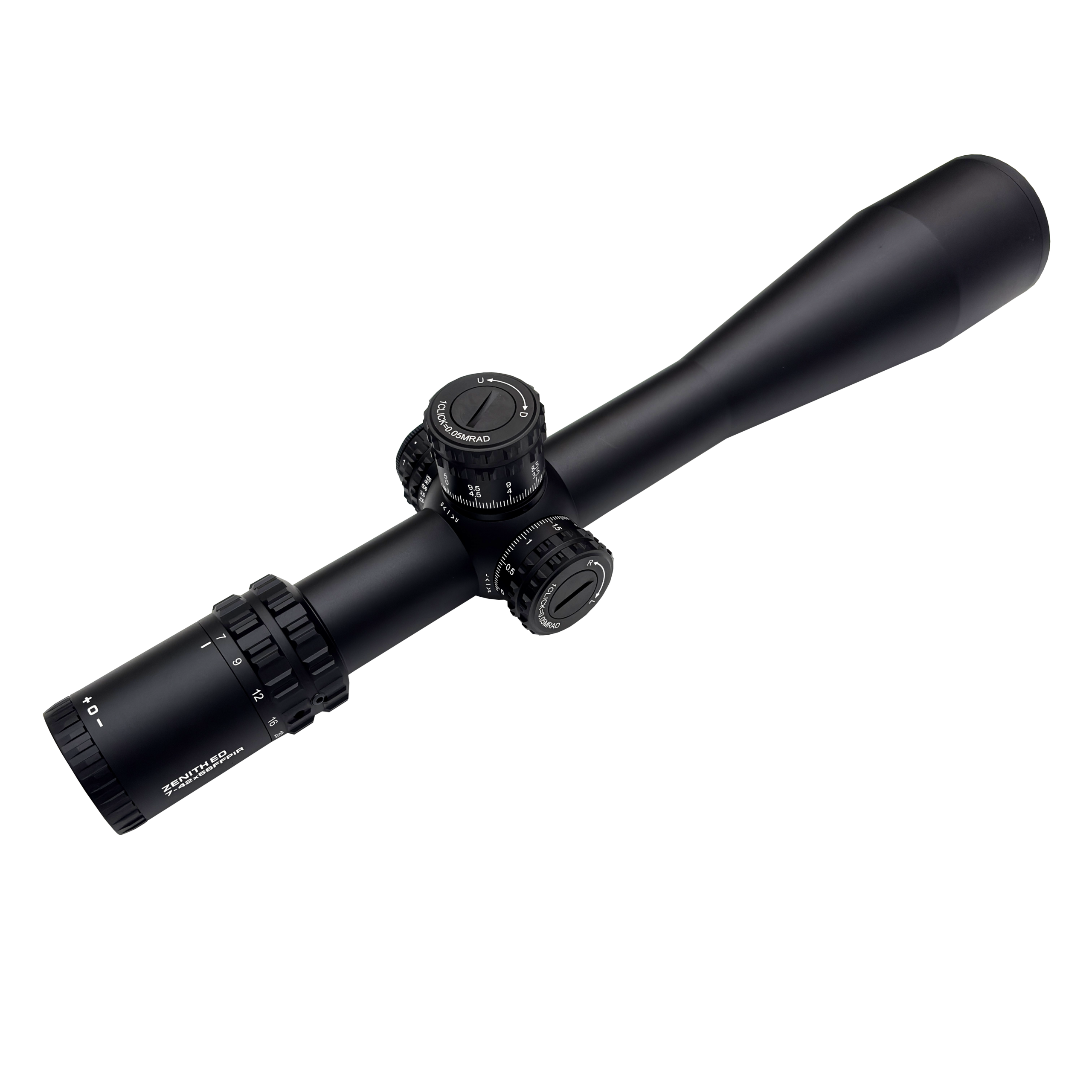

OPTICAL RIFLESCOPE
ZENITH ED 7–42×56
7–42×56 · IR · 34 mm tube
Find your focus.
Keep the detail.
ZENITH ED 7–42×56 combines variable magnification, an illuminated reticle and a 34 mm tube for optical observation.
As low as $1,490.00
OPTICAL SYSTEM
The optical architecture.
Extra-low dispersion glass
ED glass helps control colour fringing at high-contrast edges.
The fully multi-coated lens system reduces surface reflections and supports a bright, clear image.
- Field of view
- 3.43°-0.57°
- Eye Relief
- 3.77,( 95 mm)
- Light transmission
- 91%

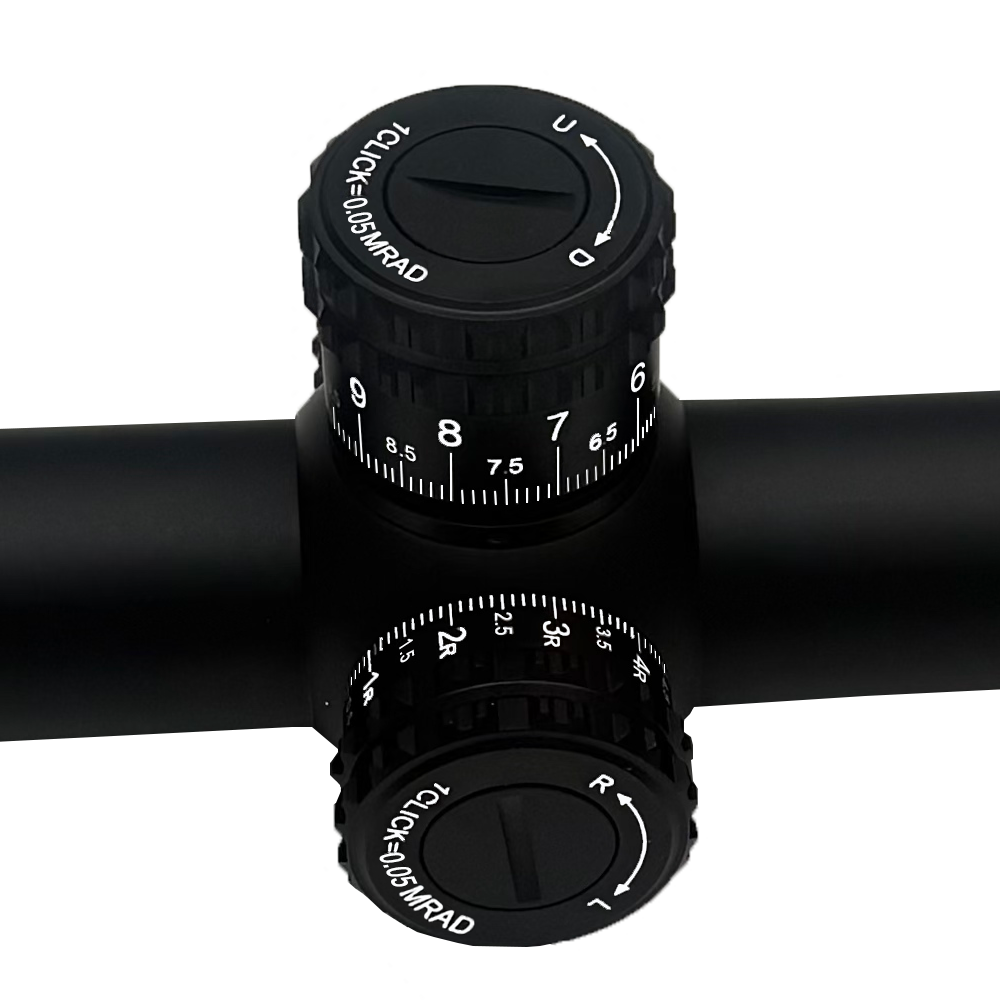

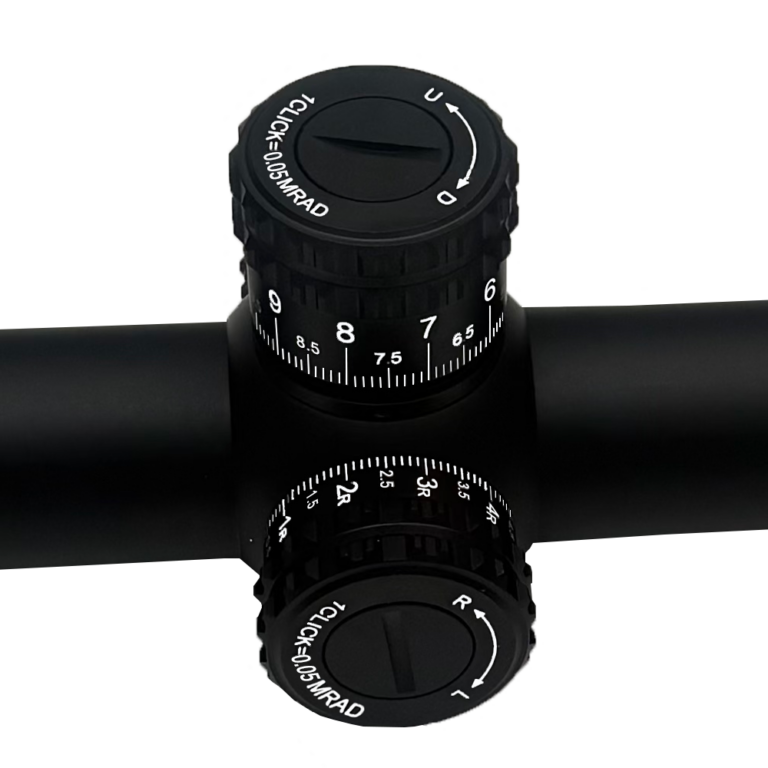

RETICLE & ADJUSTMENT
Reticle. Focus. Adjustment.

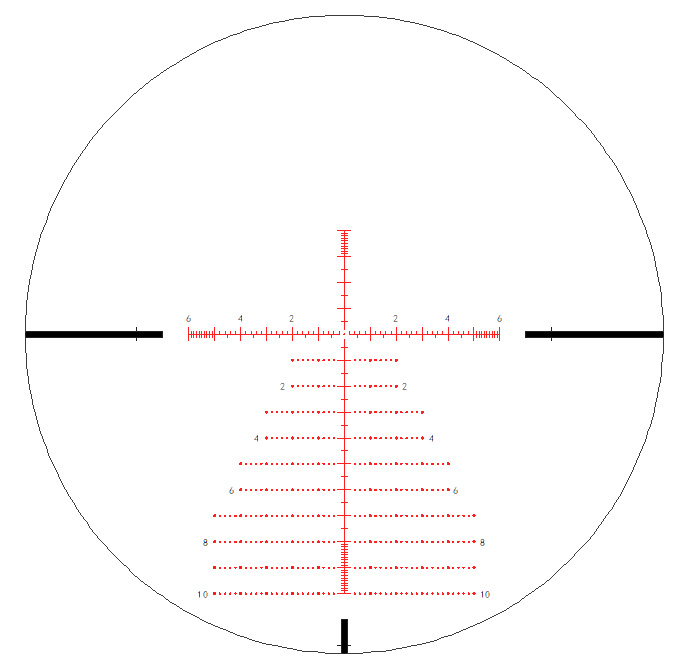

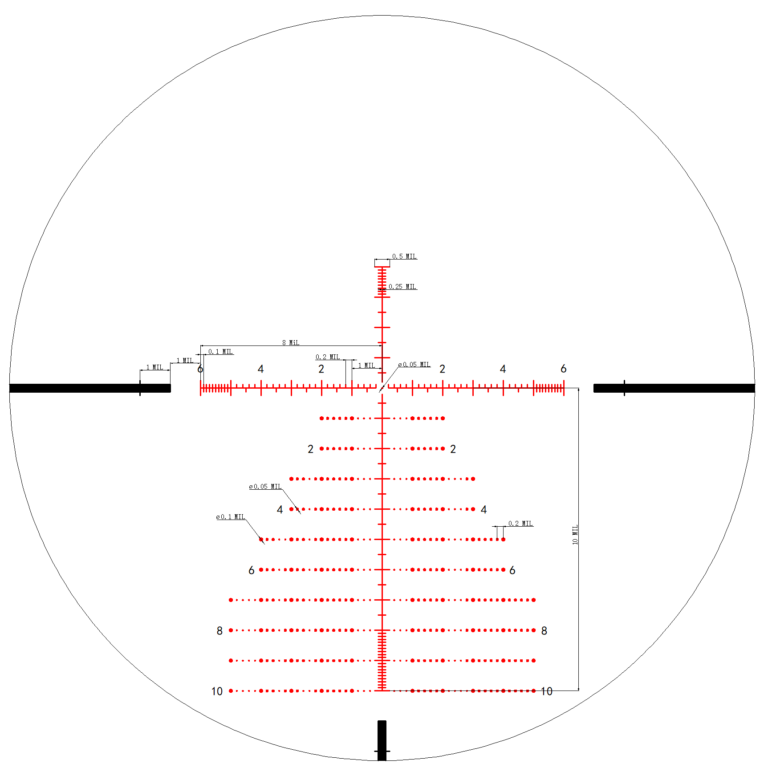

An illuminated reticle provides a visible reference within the optical image.
7–42×56 · IR · 34 mm tube
- Reticle type
- reticle
- Click value
- 0.1MRAD
- Parallax adjustment
- 10yds-∞
- Diopter Adjustment
- ±2.5
BODY & ENVIRONMENT
Engineered around the optics.
The 34 mm tube is constructed from T6063 aluminium alloy. Nitrogen filling helps limit internal fogging when temperatures change.
- Body material
- T6063 aluminium alloy
- Nitrogen filled
- Yes
- Water resistance
- IPX7
TECHNICAL SPECIFICATIONS
The complete specification.
ZENITH ED 7–42×56
7–42×56 · IR · 34 mm tube
Optics & viewing
| Magnification | 7-42× |
|---|---|
| Lens coatings | fully green multi coated |
| Ocular lens diameter | 38 mm |
| Field of view | 3.43°-0.57° |
| Exit Pupil | 8 mm - 1.33 mm |
| Eye Relief | 3.77,( 95 mm) |
| Light transmission | 91% |
| Objective lens diameter | 56 mm |
Construction & environment
| Tube diameter | 34 mm |
|---|---|
| Exterior Finish | Matte Black |
| Mounting Length | 200 mm |
| Length | 402 mm |
| Body material | T6063 aluminium alloy |
| Nitrogen filled | Yes |
| Water resistance | IPX7 |
Reticle & controls
| Reticle type | reticle |
|---|---|
| Diopter Adjustment | ±2.5 |
| Click value | 0.1MRAD |
| Max. elevation adjustment range (MIL) | 23.26MIL |
| Max. windage adjustment range (MIL) | 23.26MIL |
| Parallax adjustment | 10yds-∞ |
KECK / QUALITY ASSURANCE
Quality Assurance: Lifetime warranty applies to manufacturing defects
SUPPLIED WITH THE PRODUCT
In the box.
- Riflescope
- Instruction manual
- Sunshade
- Lens cleaning cloth
- Mounting rings
