OPTICAL RIFLESCOPE

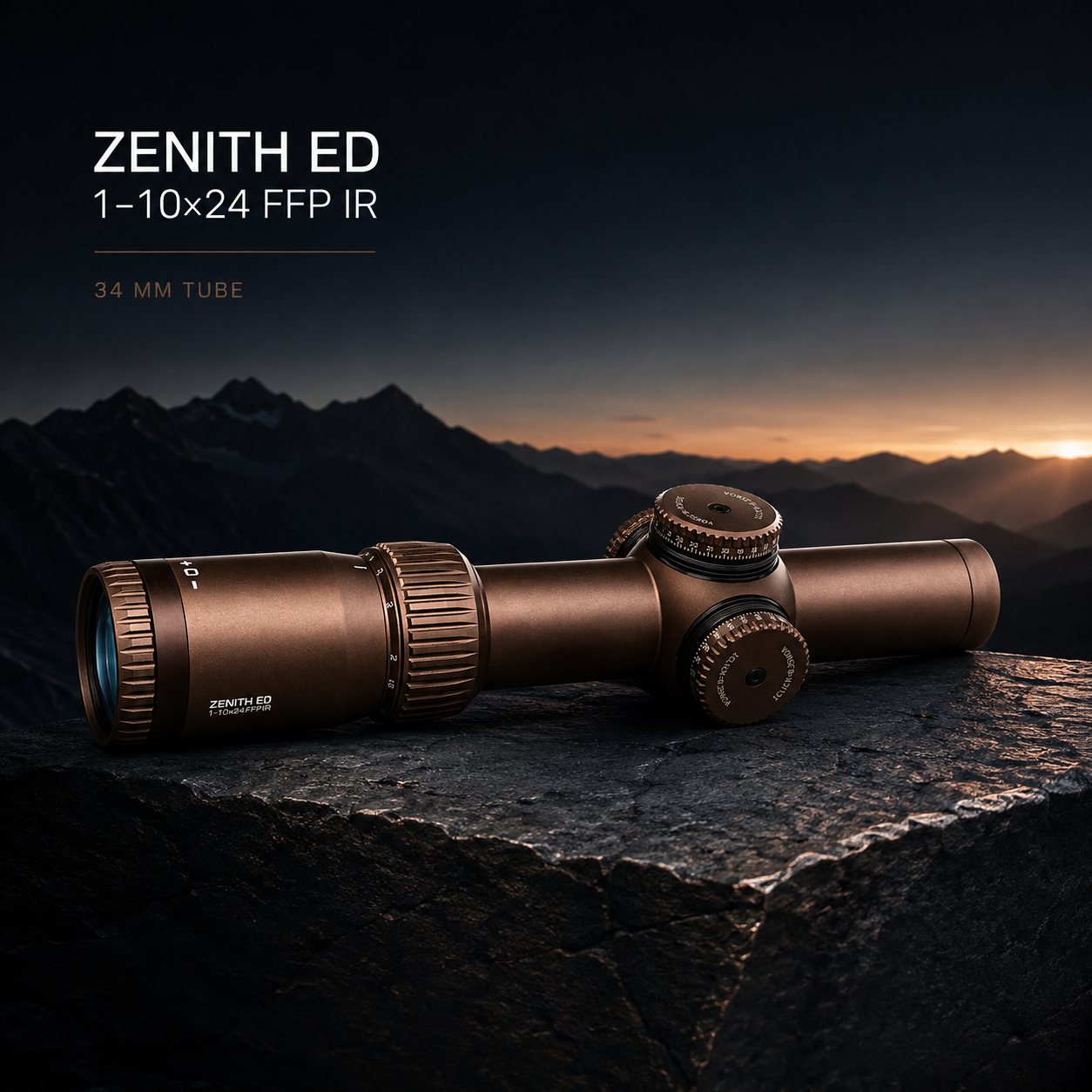

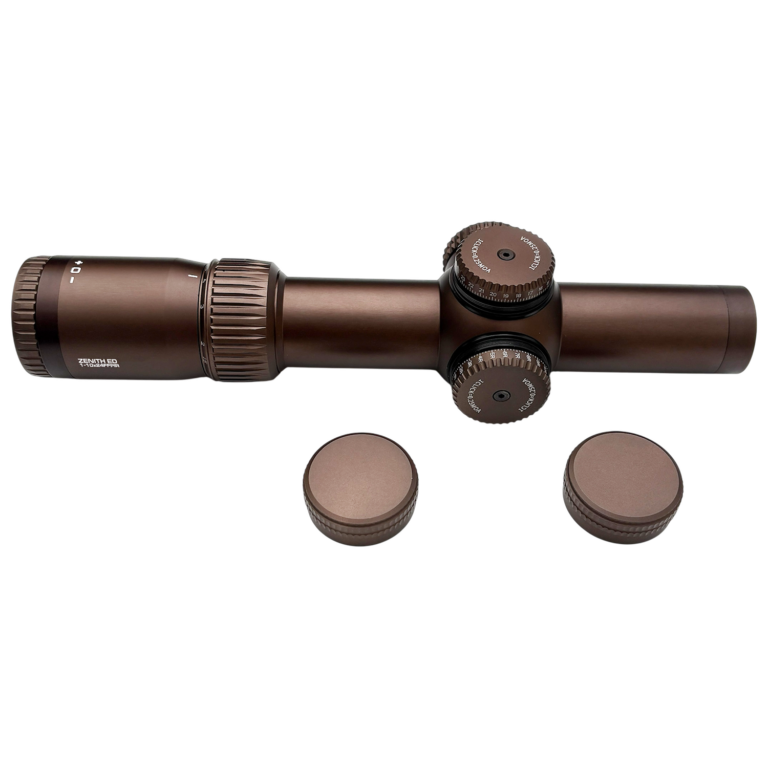

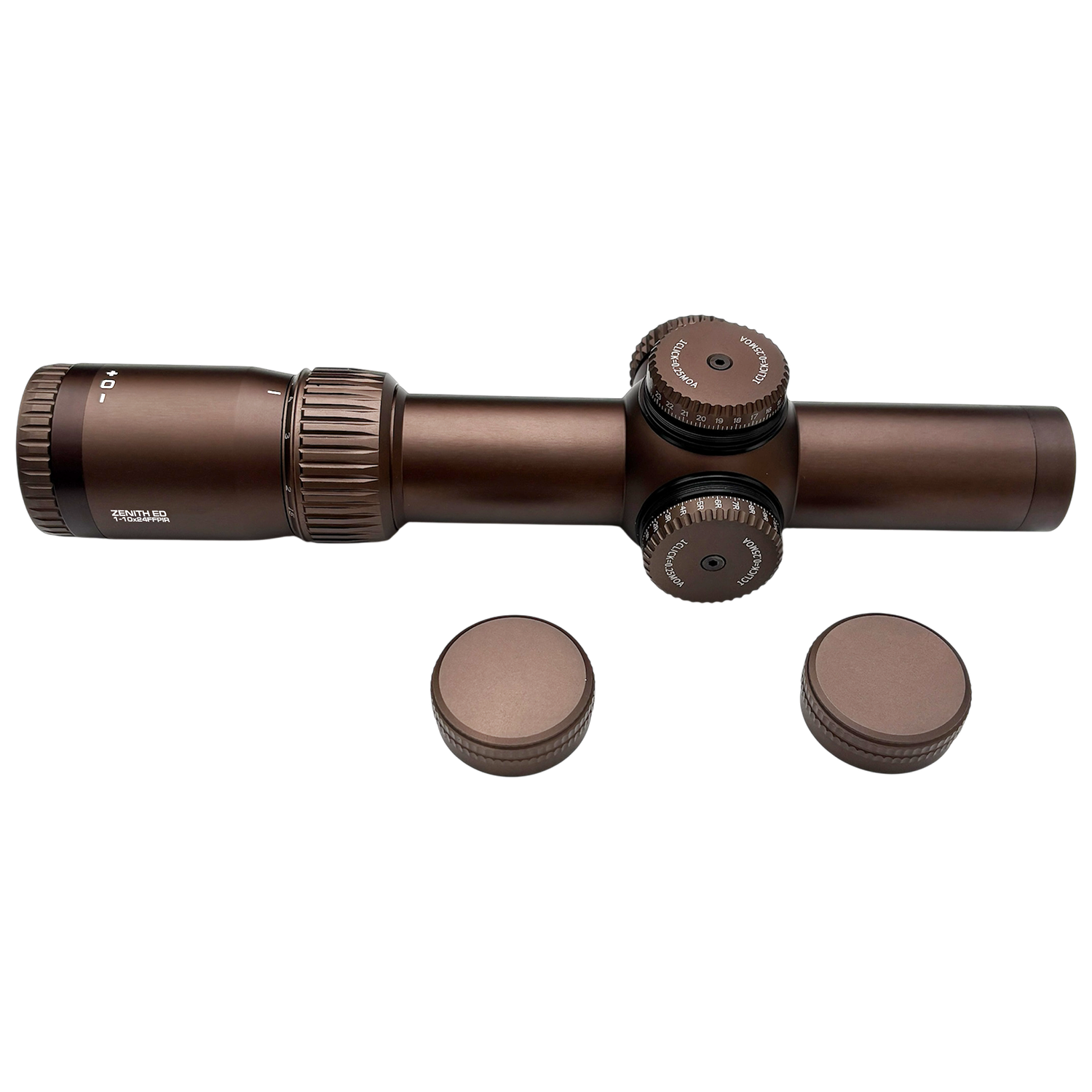

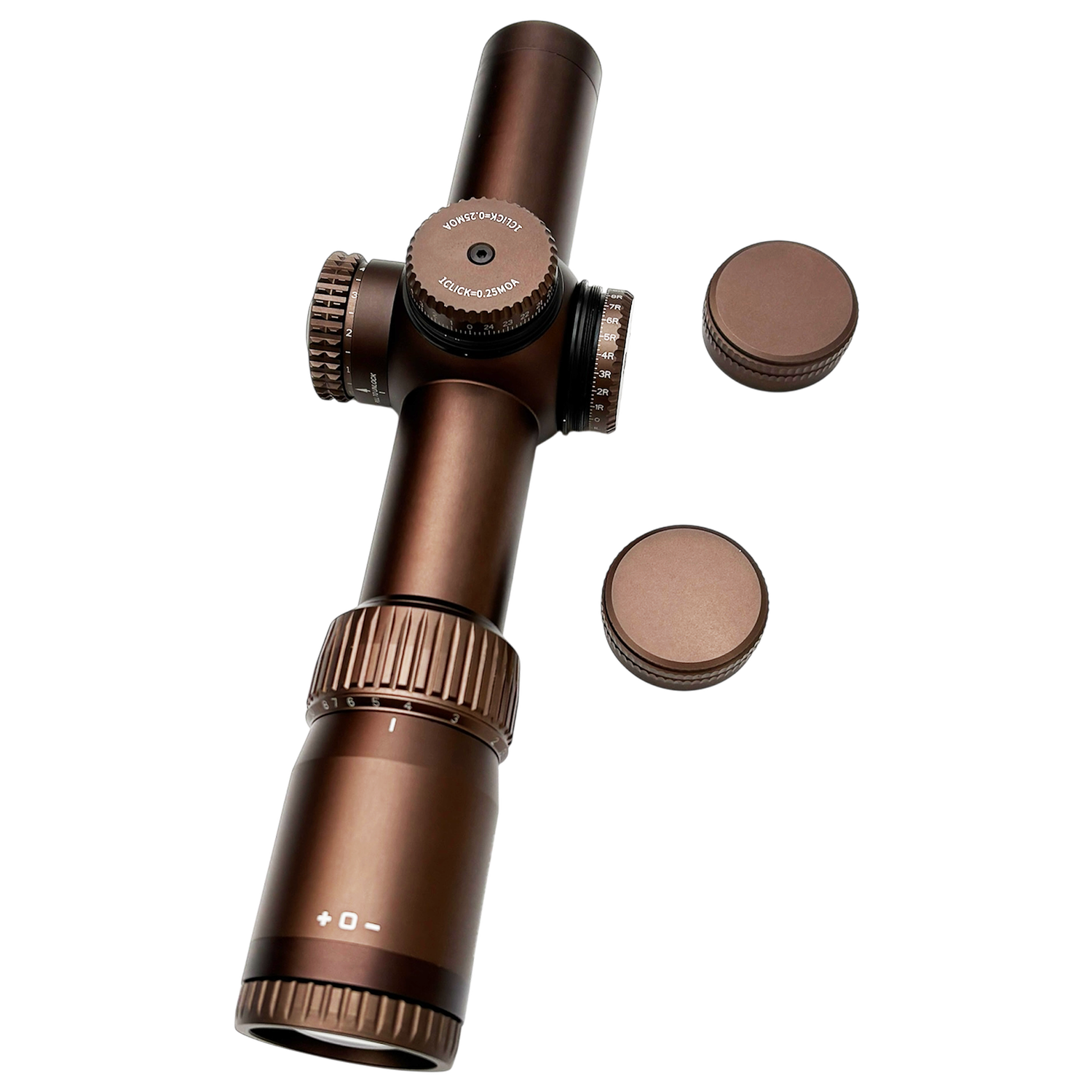

ZENITH ED 1–10×24
1–10×24 · FFP IR · 34 mm tube
Find your focus.
Keep the detail.
ZENITH ED 1–10×24 combines a 1–10× magnification range with an illuminated first focal plane reticle and a 34 mm tube.
As low as $1,190.00
OPTICAL SYSTEM
The optical architecture.
Extra-low dispersion glass
ED glass helps control colour fringing at high-contrast edges.
The fully multi-coated lens system reduces surface reflections and supports a bright, clear image.
- Field of view
- 11.5-115.6feet
RETICLE & ADJUSTMENT
Reticle. Focus. Adjustment.

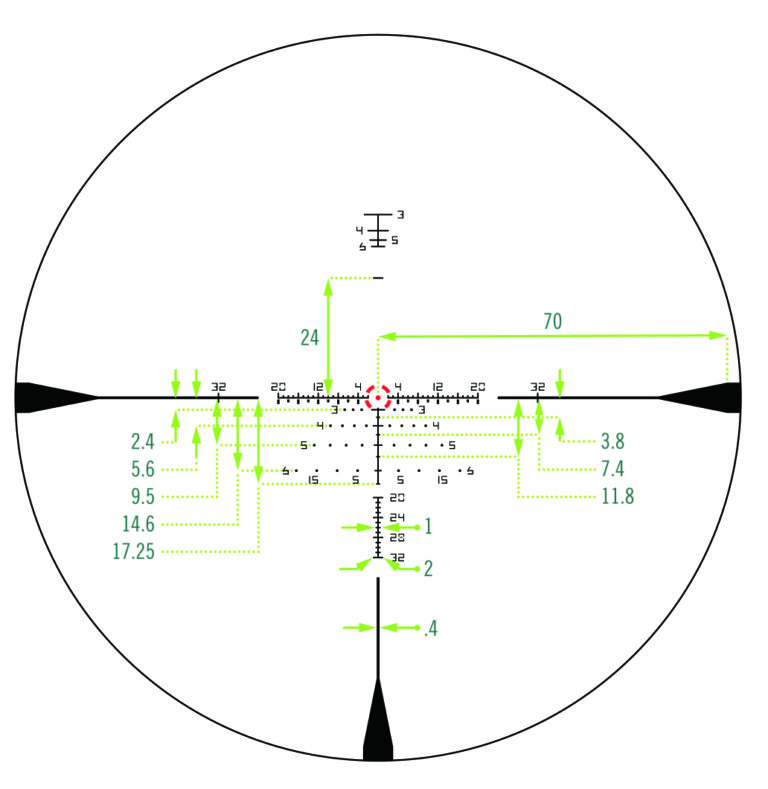

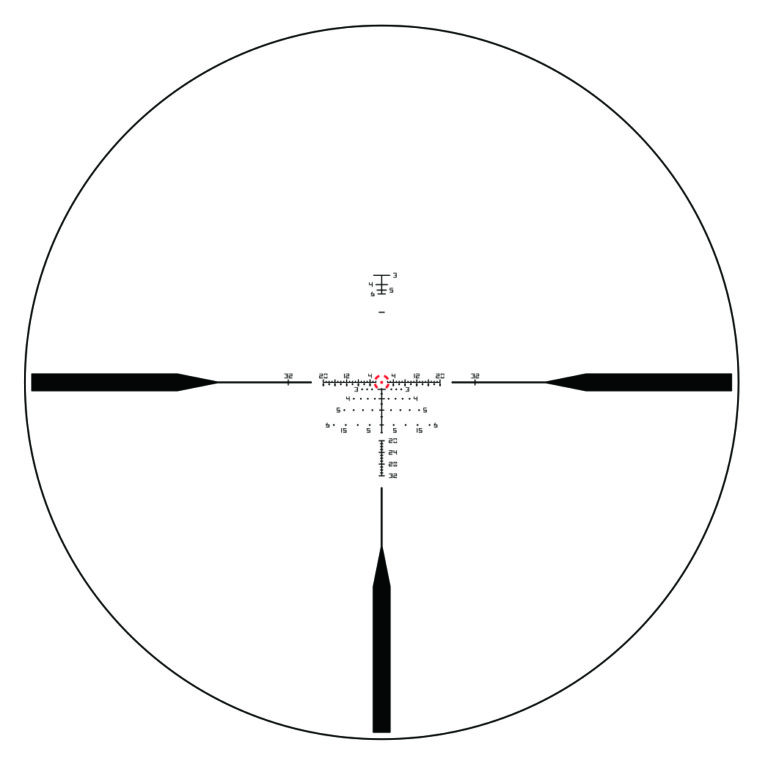

The reticle changes apparent size with magnification, preserving its relationship to the observed image.
1–10×24 · FFP IR · 34 mm tube
- Reticle type
- Glass Reticle

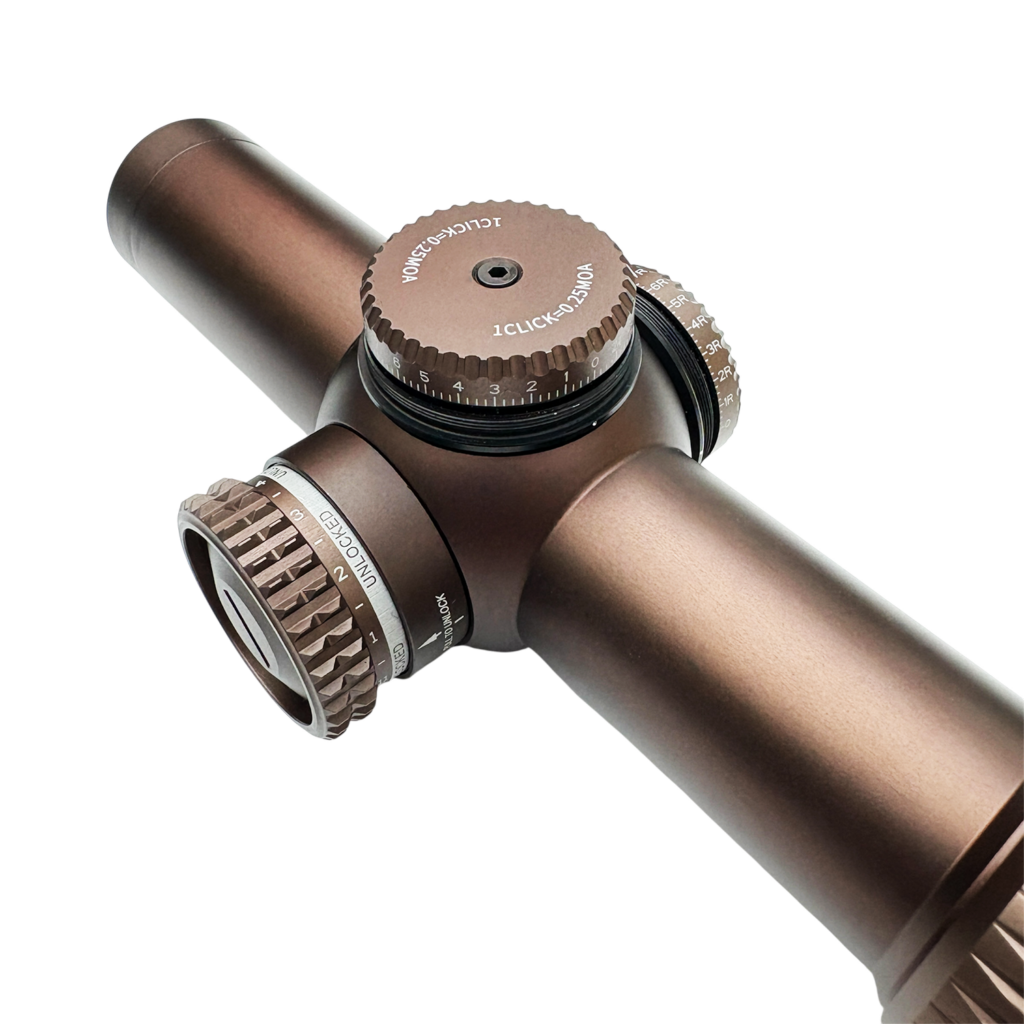

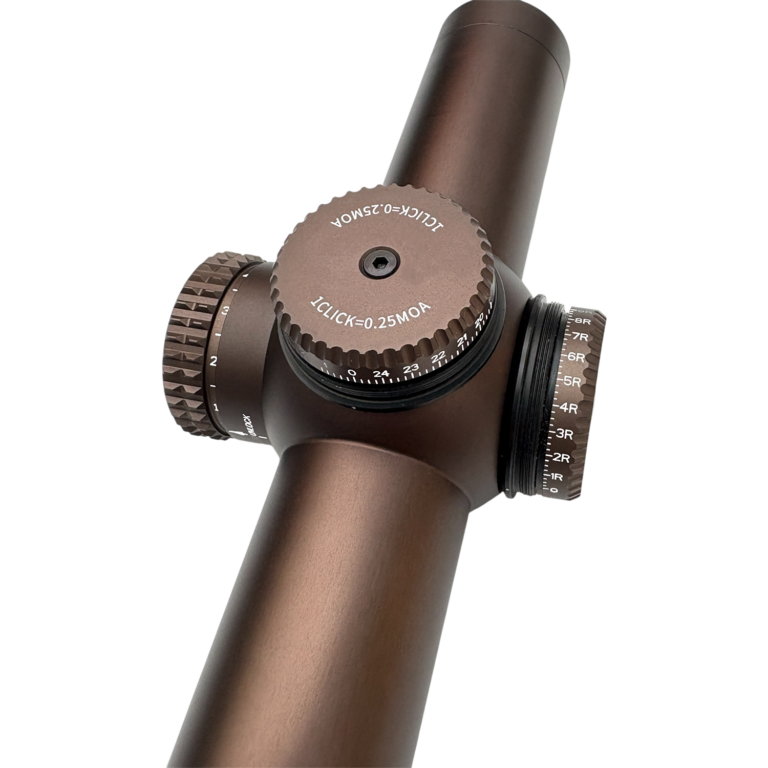

- Click value
- 1/2MOA
- Parallax adjustment
- 100yds
- Diopter Adjustment
- ±2
BODY & ENVIRONMENT
Engineered around the optics.
The 34 mm tube is constructed from T7075 aluminium alloy. Nitrogen filling helps limit internal fogging when temperatures change.
- Body material
- T7075 aluminium alloy
- Nitrogen filled
- Yes
- Water resistance
- IPX7
TECHNICAL SPECIFICATIONS
The complete specification.
ZENITH ED 1–10×24
1–10×24 · FFP IR · 34 mm tube
Optics & viewing
| Model | ED 1-10×24FFPIR |
|---|---|
| Magnification | 1-10× |
| Lens coatings | fully green multi coated |
| Ocular lens diameter | 38 mm |
| Field of view | 11.5-115.6feet |
| Objective lens diameter | 24 mm |
Construction & environment
| Tube diameter | 34 mm |
|---|---|
| Exterior Finish | Matte Black |
| Mounting Length | 160 mm |
| Length | 10.67in |
| Body material | T7075 aluminium alloy |
| Nitrogen filled | Yes |
| Water resistance | IPX7 |
Reticle & controls
| Reticle type | Glass Reticle |
|---|---|
| Diopter Adjustment | ±2 |
| Click value | 1/2MOA |
| Max. elevation adjustment range (MOA) | ±60MOA |
| Max. windage adjustment range (MOA) | ±60MOA |
| Parallax adjustment | 100yds |
KECK / QUALITY ASSURANCE
Quality Assurance: Lifetime warranty applies to manufacturing defects
SUPPLIED WITH THE PRODUCT
In the box.
- Riflescope
- Instruction manual
- Sunshade
- Lens cleaning cloth
- Batteries
- Mounting rings
