Thermal detector
256 × 192 · 12 μm · ≤35 mK
THERMAL IMAGING
IGNIS R3
Mini thermal imager
See beyond visible light.
Discover thermal detail.
IGNIS R3 combines a 256 × 192 thermal detector, a 13 mm F0.9 lens and a 60 Hz refresh rate in a compact thermal imaging unit with 0.5–1.5× magnification.
As low as $1,390.00
KECK · CREATING VALUE FOR USERSIGNIS R3
256×192THERMAL DETECTOR
13 mmOBJECTIVE LENS
60 HzREFRESH RATE
≤35 mKNETD
DETECTOR / OPTICS / DISPLAY
Three elements. One thermal image.

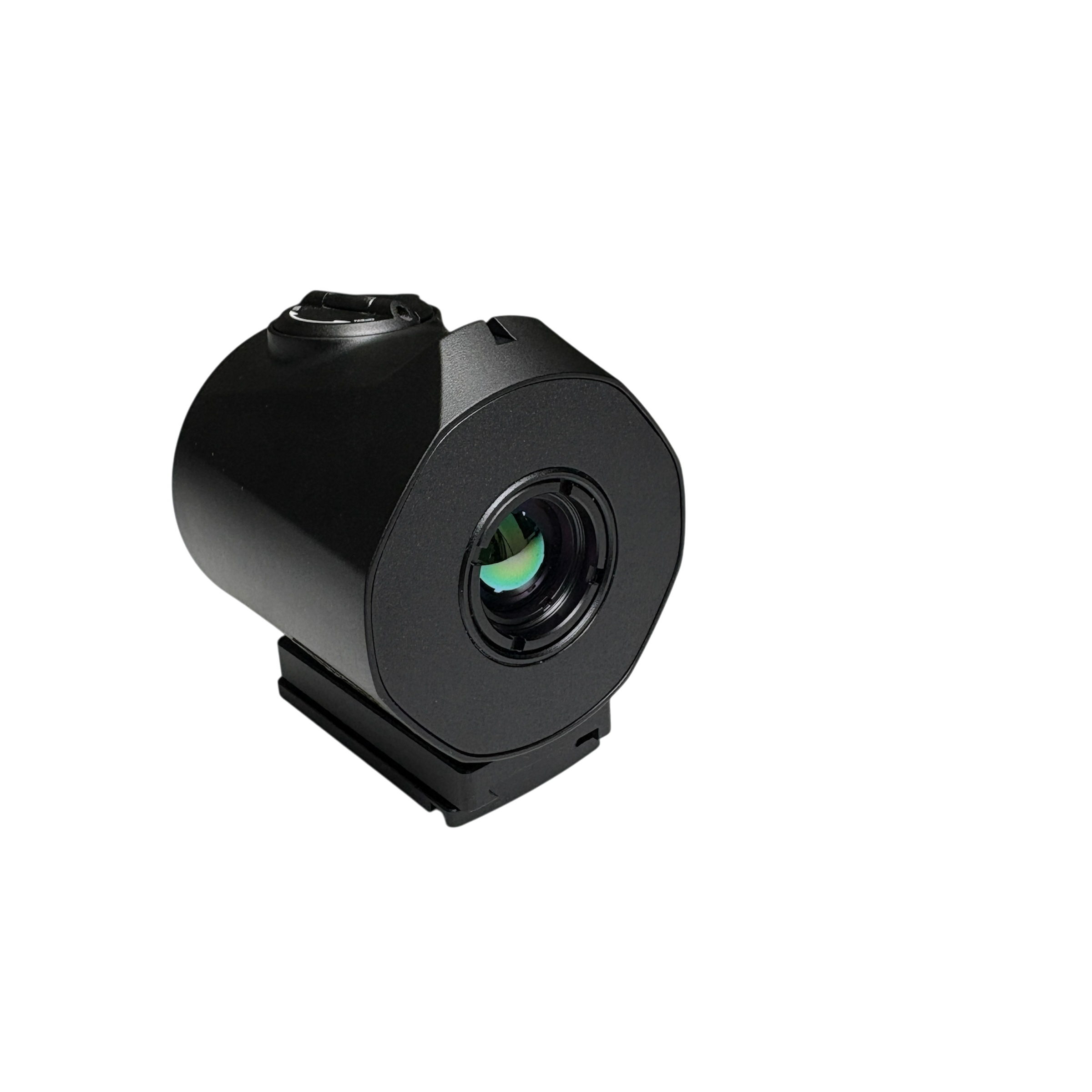

Objective lens
13 mm · F0.9

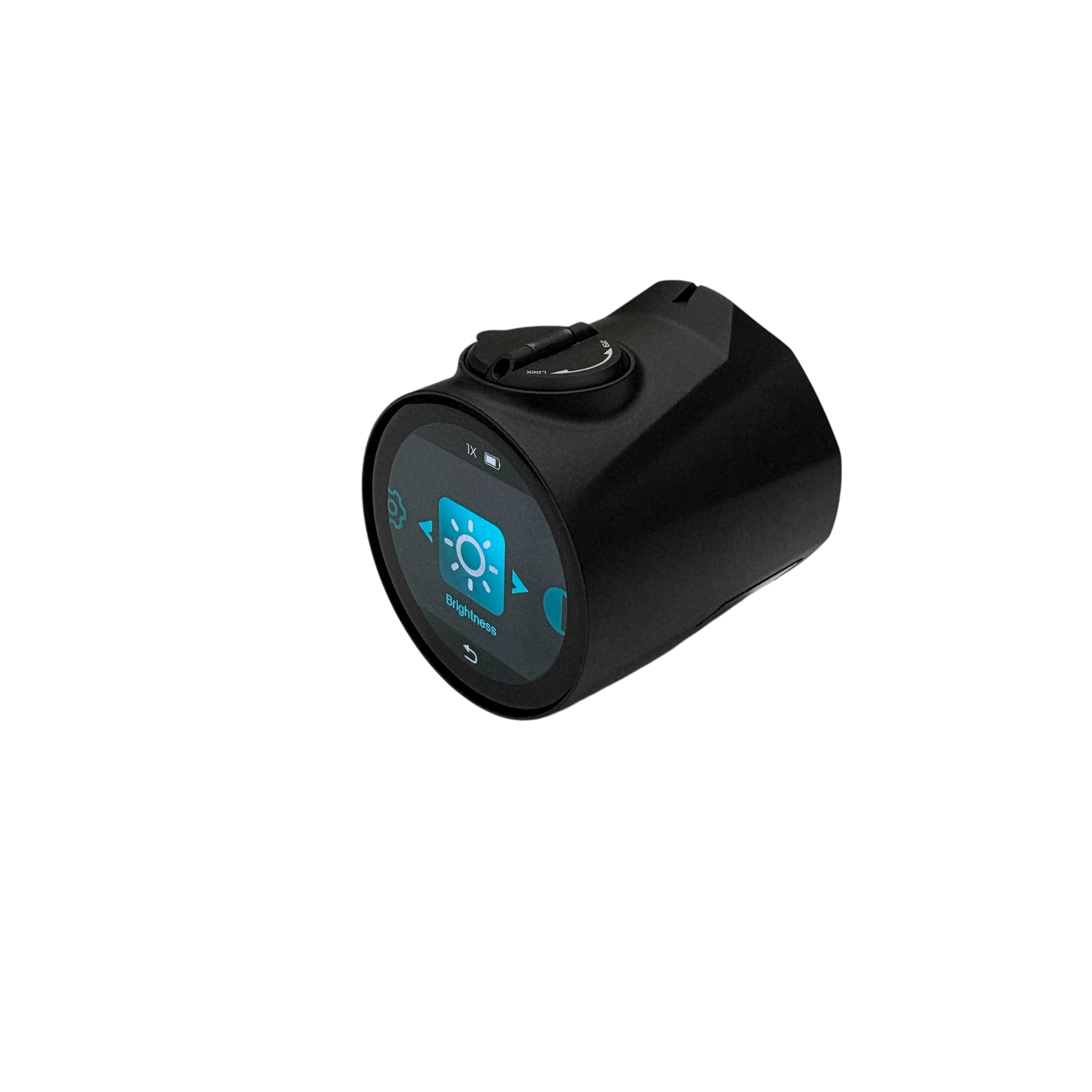

Display
466 × 466 · 60 Hz
IGNIS R3 combines a 256 × 192 detector with 12 μm pixels and ≤35 mK NETD sensitivity. A 13 mm F0.9 lens, 60 Hz refresh rate and 466 × 466 display complete the thermal viewing system.
- Thermal Detector Resolution
- 256×192
- NETD
- ≤35 mK
- Field of View
- 13.5° × 10.1°
DISPLAY PALETTES
Choose your thermal perspective.
Switch between the display palettes available on IGNIS R3.
THERMAL DISPLAY
White Hot
Warmer areas appear brighter in a monochrome view.
Illustrative colour scale · Not a captured thermal image
MODEL CAPABILITIES
Functions that work together.
Thermal observation
The thermal detector provides a view of heat signatures beyond visible light.
Display choice
Five palettes offer monochrome and colour-based display options.
Compact format
The body measures 51 × 45 × 45 mm and weighs 115 g.
POWER & CONSTRUCTION
Power for a compact system.
A rechargeable CR123 battery is specified with ≥4 hours of working time. USB Type-C accepts a 5 V external supply. The compact body is specified with 1000G shock resistance and a −20 °C to +50 °C operating range.
- Battery Type
- Rechargeable CR123
- External Power
- Type-C, 5V
- Operating Temperature
- -20°C to +50°C
- Weight
- 115g
- Dimensions
- 51×45×45 mm
- Working time
- ≥4 hours
TECHNICAL SPECIFICATIONS
The complete specification.
IGNIS R3
Mini thermal imager
Thermal imaging & display
| Model | IGNIS R3 |
|---|---|
| Magnification | 0.5–1.5× |
| Thermal Detector Resolution | 256×192 |
| Objective Lens | 13 mm F0.9 |
| Pixel Size | 12μm |
| NETD | ≤35 mK |
| Display Resolution | 466×466 |
| Field of View | 13.5° × 10.1° |
| Refresh Rate | 60 Hz |
| Image modes | White Hot / Black Hot / Iron Red / Green Hot / Red Hot |
Power & connectivity
| Battery Type | Rechargeable CR123 |
|---|---|
| External Power | Type-C, 5V |
| Working time | ≥4 hours |
Construction & environment
| Shock Resistance | 1000G |
|---|---|
| Operating Temperature | -20°C to +50°C |
| Weight | 115g |
| Dimensions | 51×45×45 mm |
Detection and identification
Published distances for the subject sizes shown. Viewing conditions affect detection and identification.
| Subject | Subject size | Detection | Identification |
|---|---|---|---|
| Vehicle | 2.3 × 2.3 m | 1,200 m | 400 m |
| Personnel | 1.8 × 0.5 m | 300 m | 100 m |
| Deer | 1.7 × 0.4 m | 200 m | 80 m |
| Wild boar | 0.9 × 0.7 m | 170 m | 60 m |

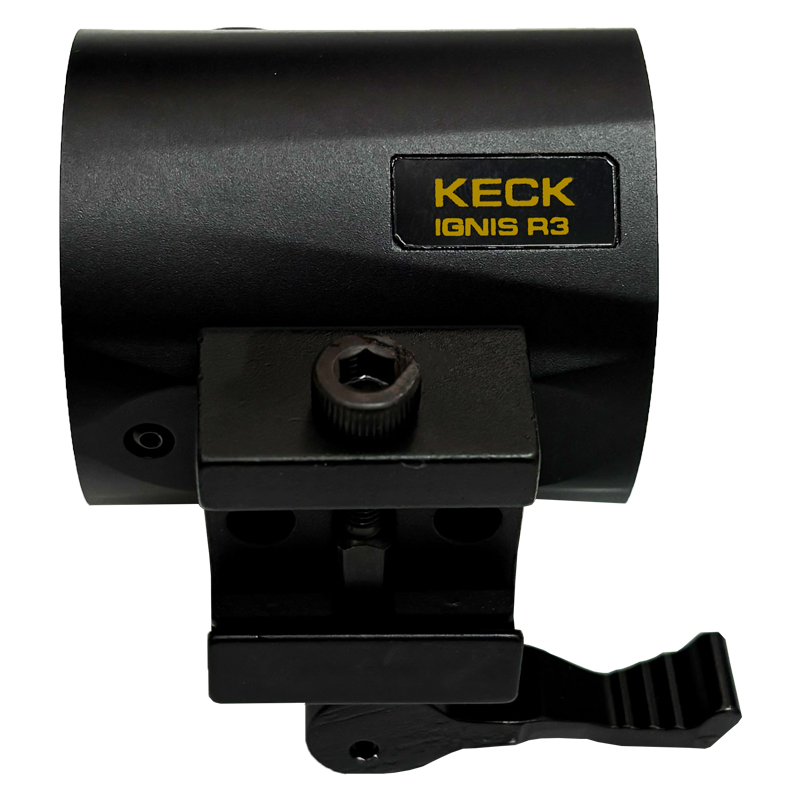

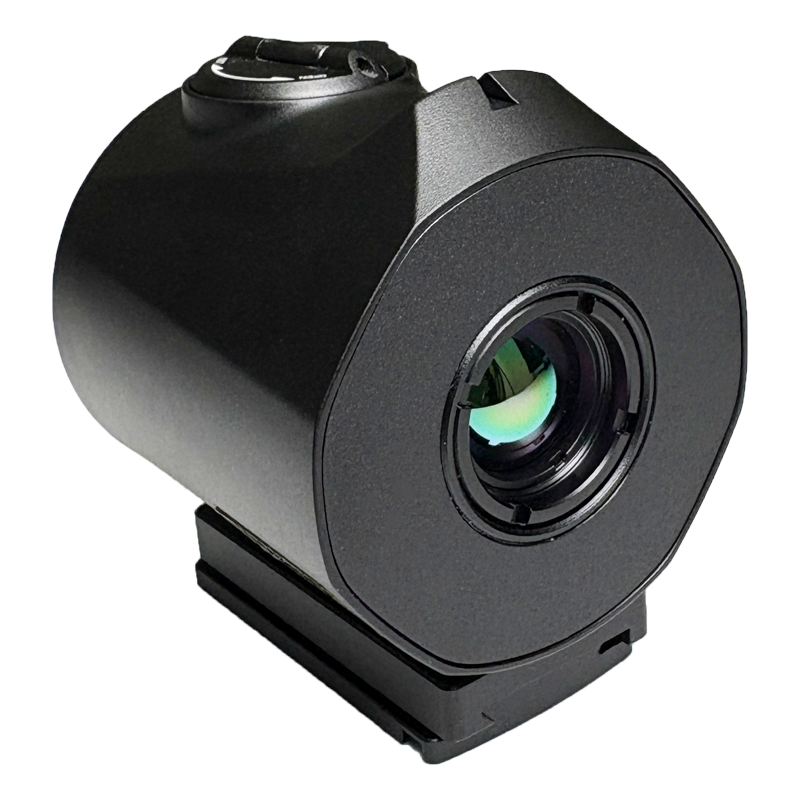

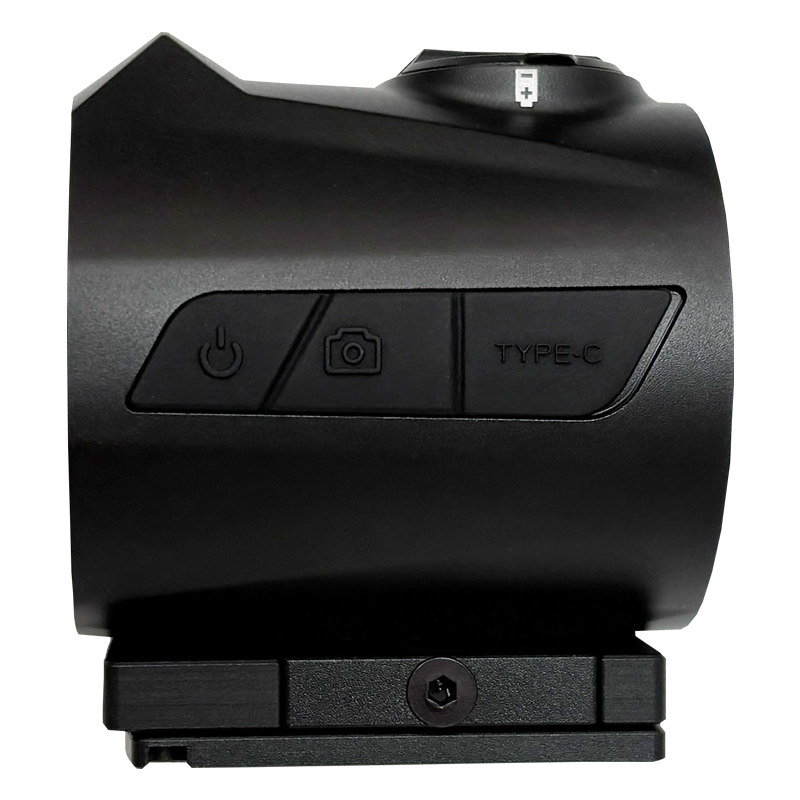

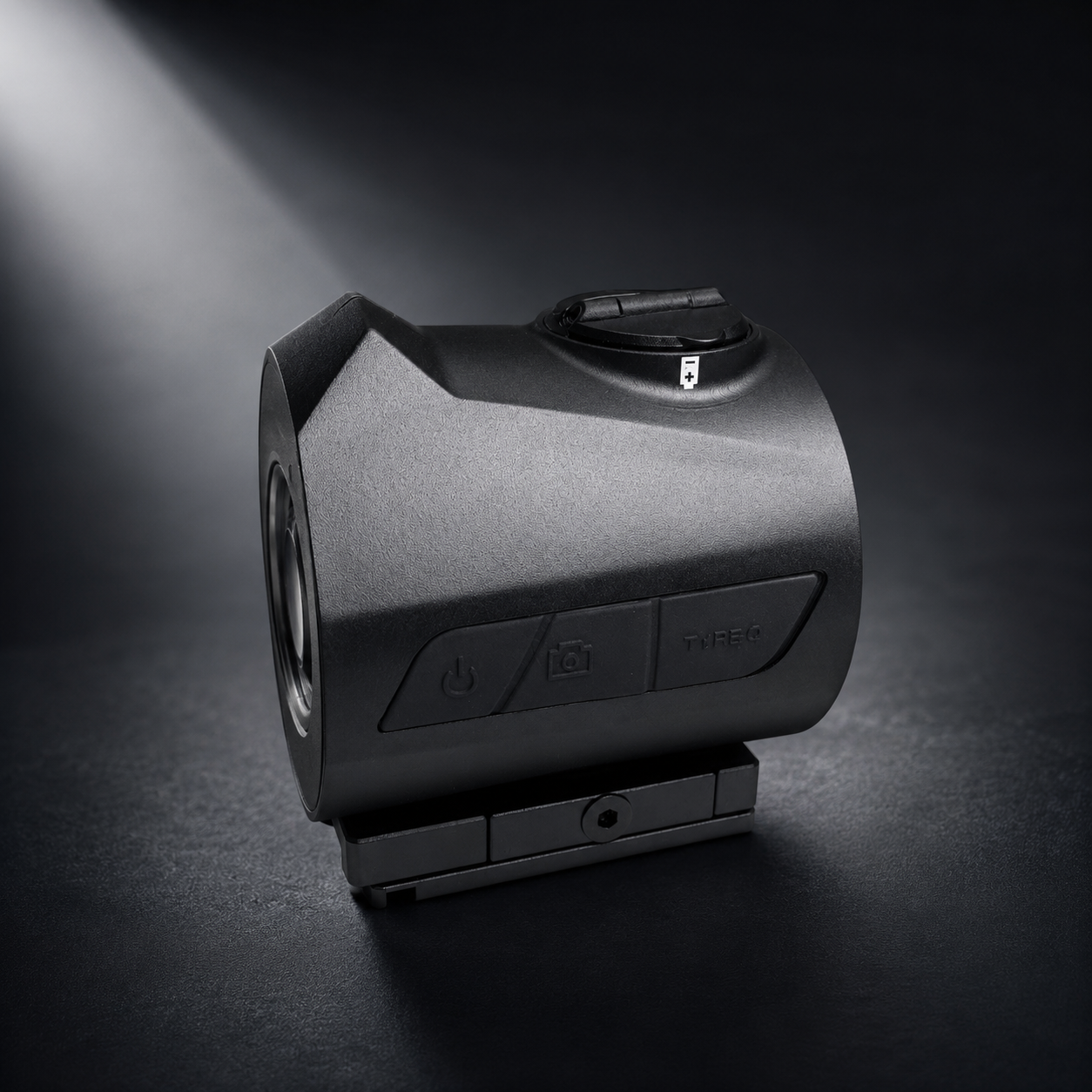

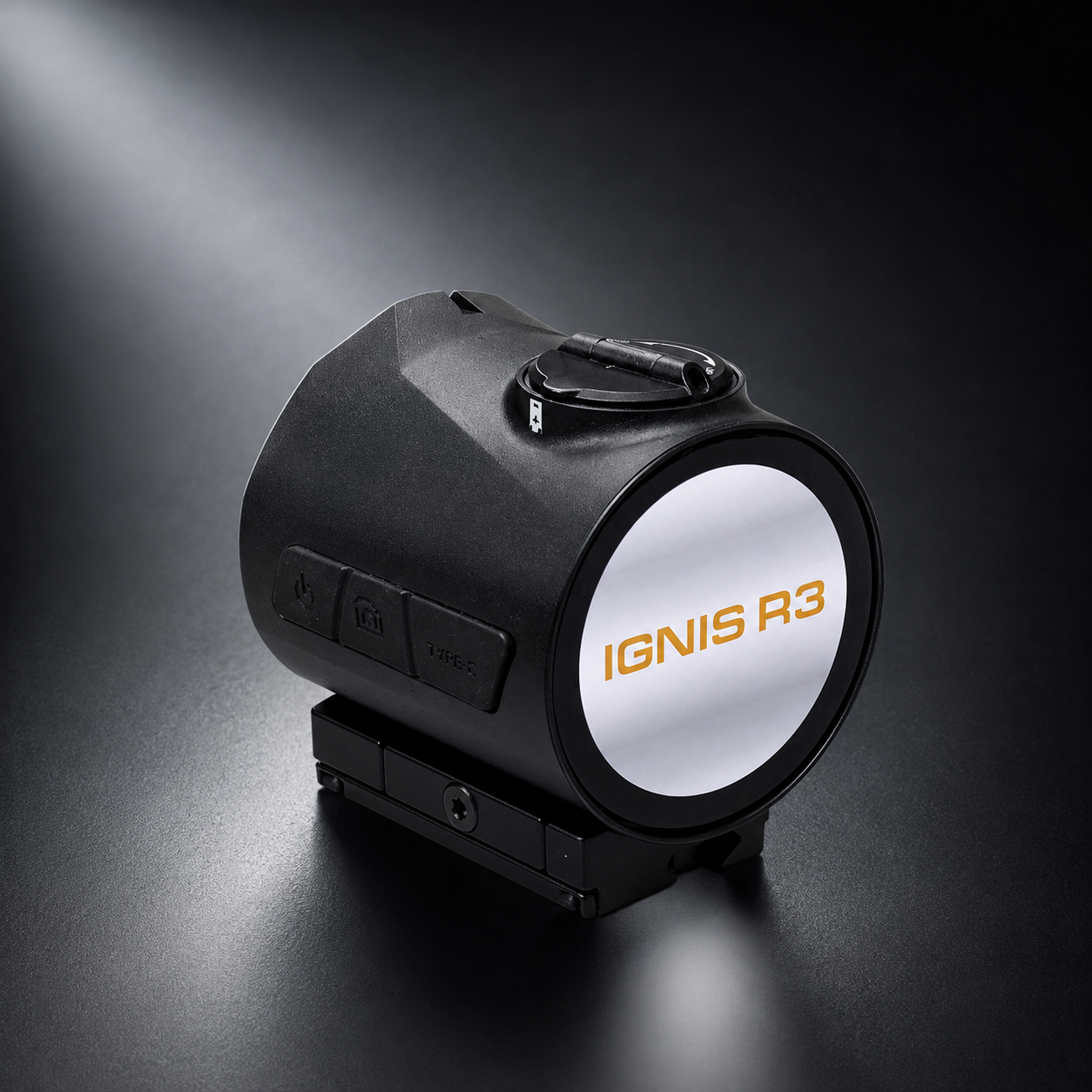

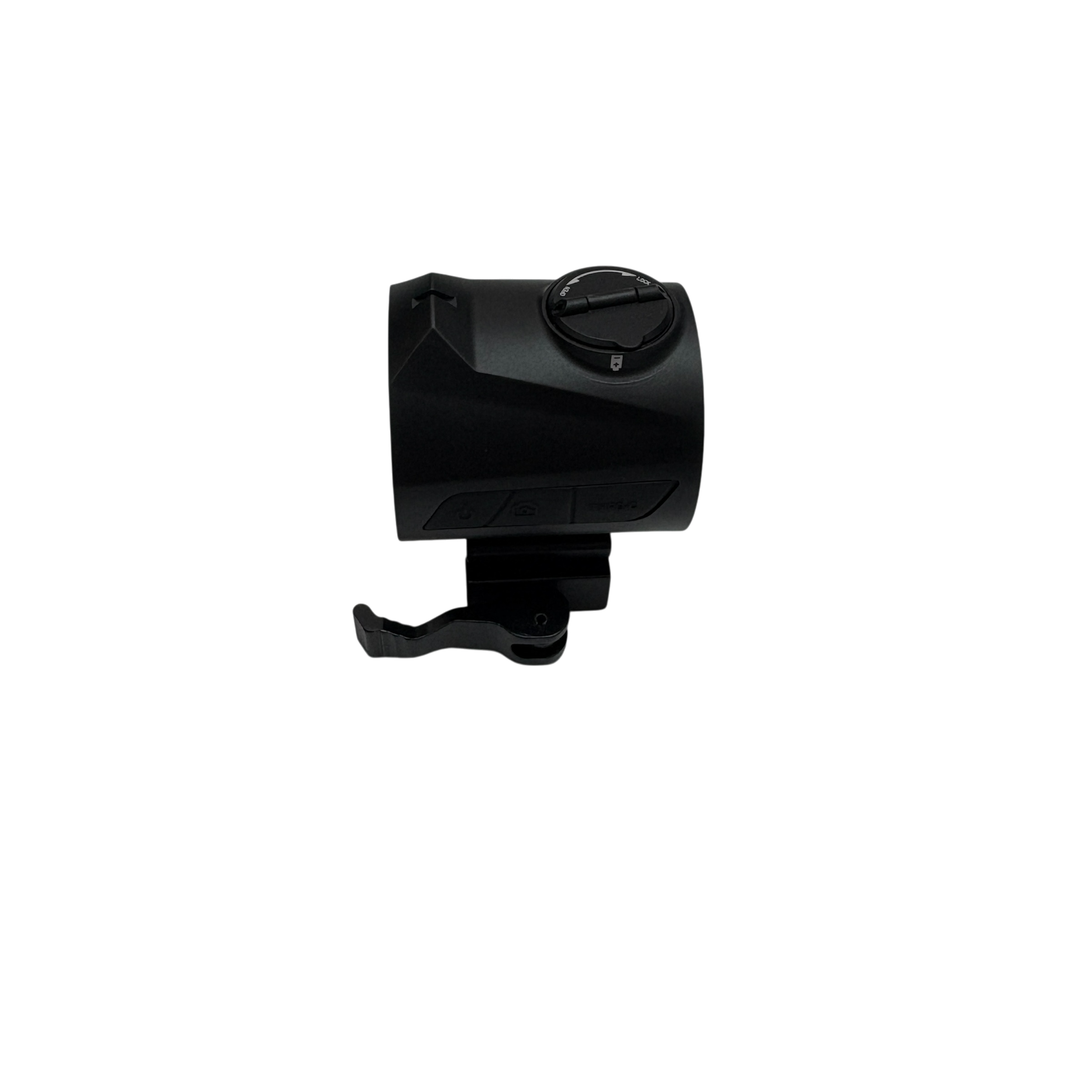

PRODUCT DETAILS
A closer look.
