Thermal detector
256 × 192 · 12 μm · ≤35 mK
MINI THERMAL IMAGER
IGNIS M3
256 × 192 · 13 mm F0.9 · 60 Hz
Compact size.
Powerful thermal performance.
Discover heat signatures beyond visible light. A sensitive thermal detector, five display palettes and a compact 115 g body bring practical performance to every observation.
As low as$1399.00
KECK · CREATING VALUE FOR USERSEngineered for outdoor observation
256 × 192Thermal detector
≤35 mKNETD sensitivity
60 HzRefresh rate
115 gCompact body
01 / PRODUCT OVERVIEW
Thermal detail.
A complete view of the system.
IGNIS M3 combines a 256 × 192 thermal detector, a 13 mm F0.9 lens and a 60 Hz refresh rate in a compact thermal imager.
Explore the detector, lens and display first, followed by the model’s display palettes, functions and power options.
Discuss this modelDETECTOR / OPTICS / DISPLAY
Understand the imaging system.
IGNIS M3 combines a 256 × 192 detector with 12 μm pixels and ≤35 mK NETD sensitivity. A 13 mm F0.9 lens, 60 Hz refresh rate and 466 × 466 display complete the thermal viewing system.

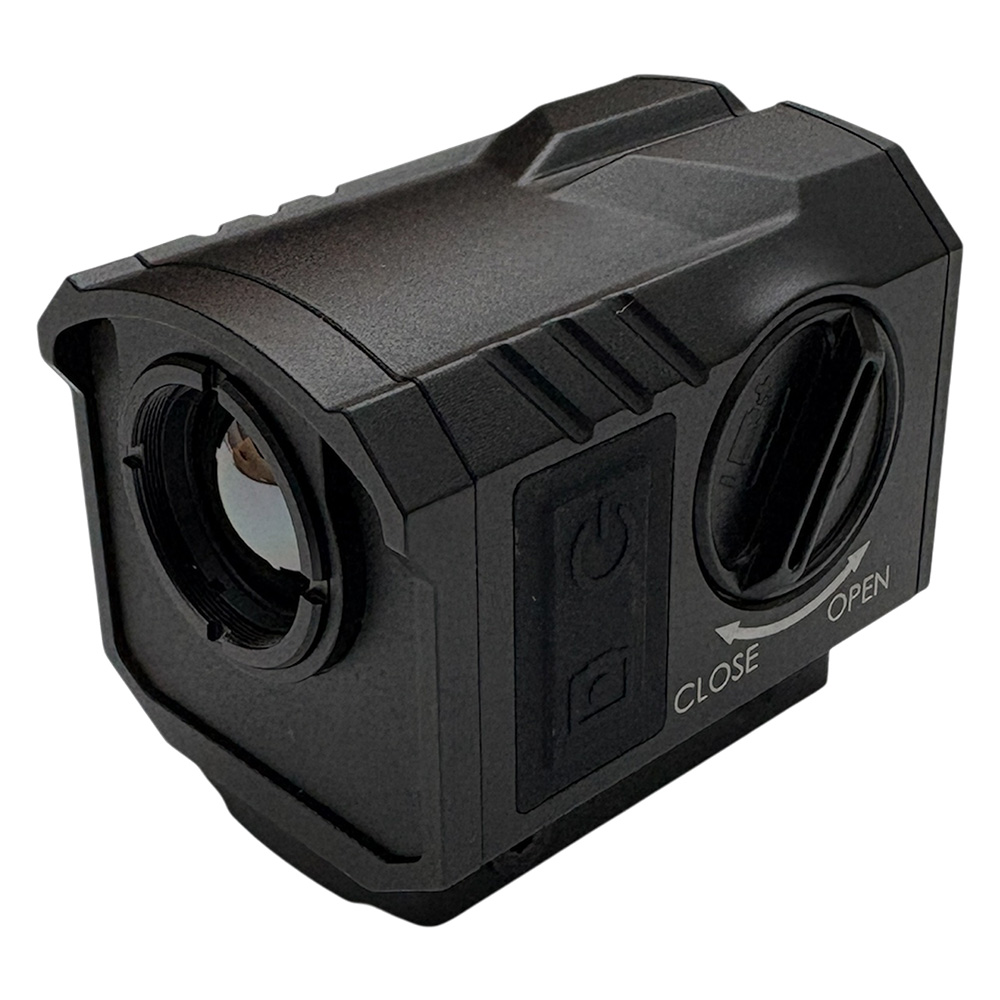

Objective lens
13 mm · F0.9
Display
466 × 466 · 60 Hz
- Thermal detector resolution
- 256 × 192
- NETD
- ≤35 mK
- Field of view
- 13.5° × 10.1°
DISPLAY PALETTES
Choose your thermal perspective.
Switch between the display palettes available on IGNIS M3.

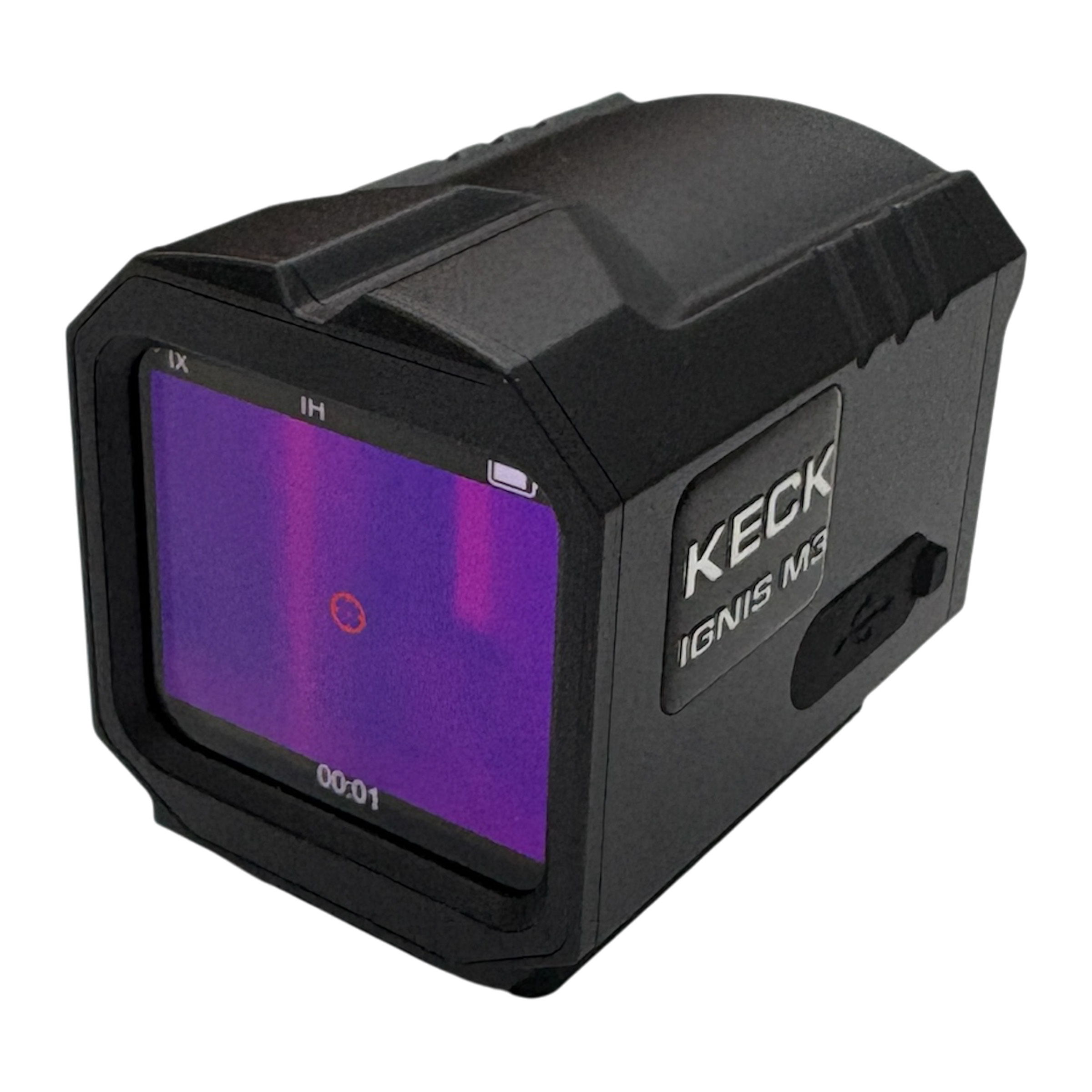

THERMAL DISPLAY
White Hot
Warmer areas appear brighter in a monochrome view.
Illustrative colour scale · Not a captured thermal image
MODEL CAPABILITIES
The functions within this model.
Thermal observation
The thermal detector provides a view of heat signatures beyond visible light.
Display choice
Five palettes offer monochrome and colour-based display options.
Compact format
The body measures 51 × 45 × 45 mm and weighs 115 g.
POWER & CONSTRUCTION
The complete device.

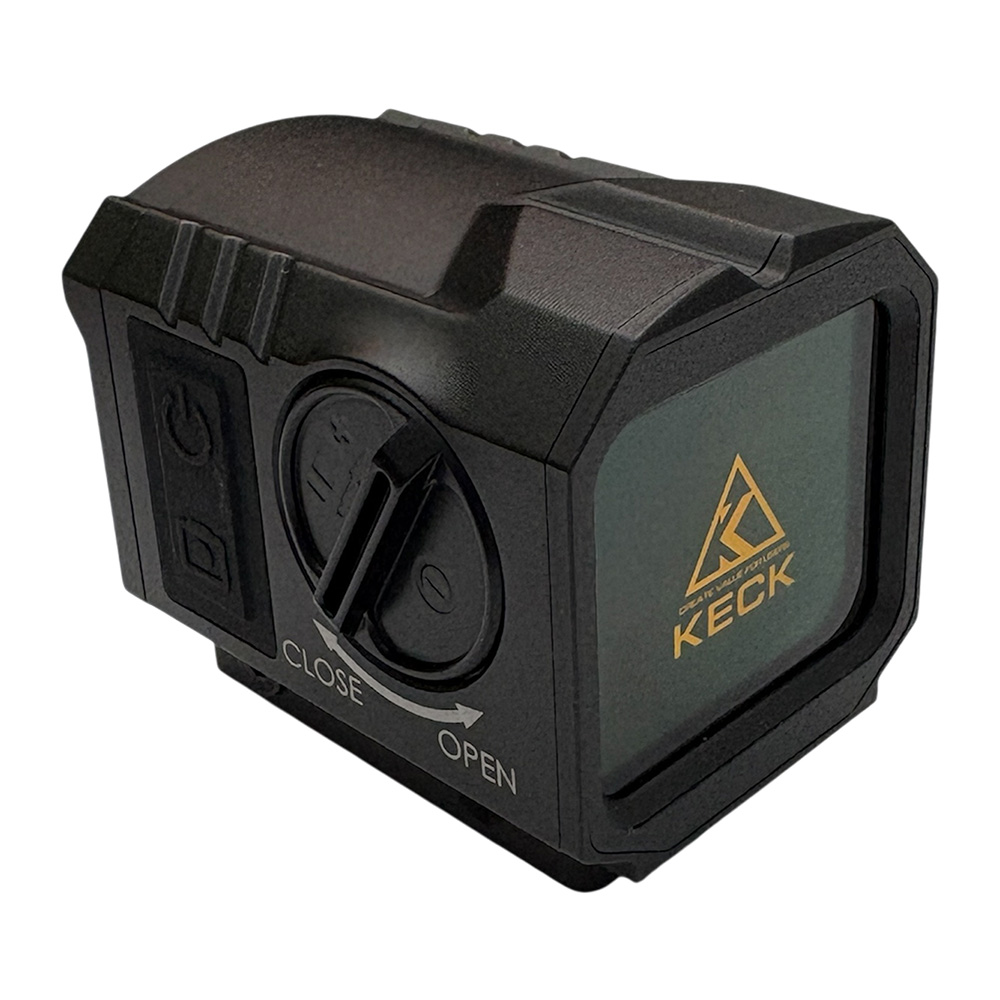

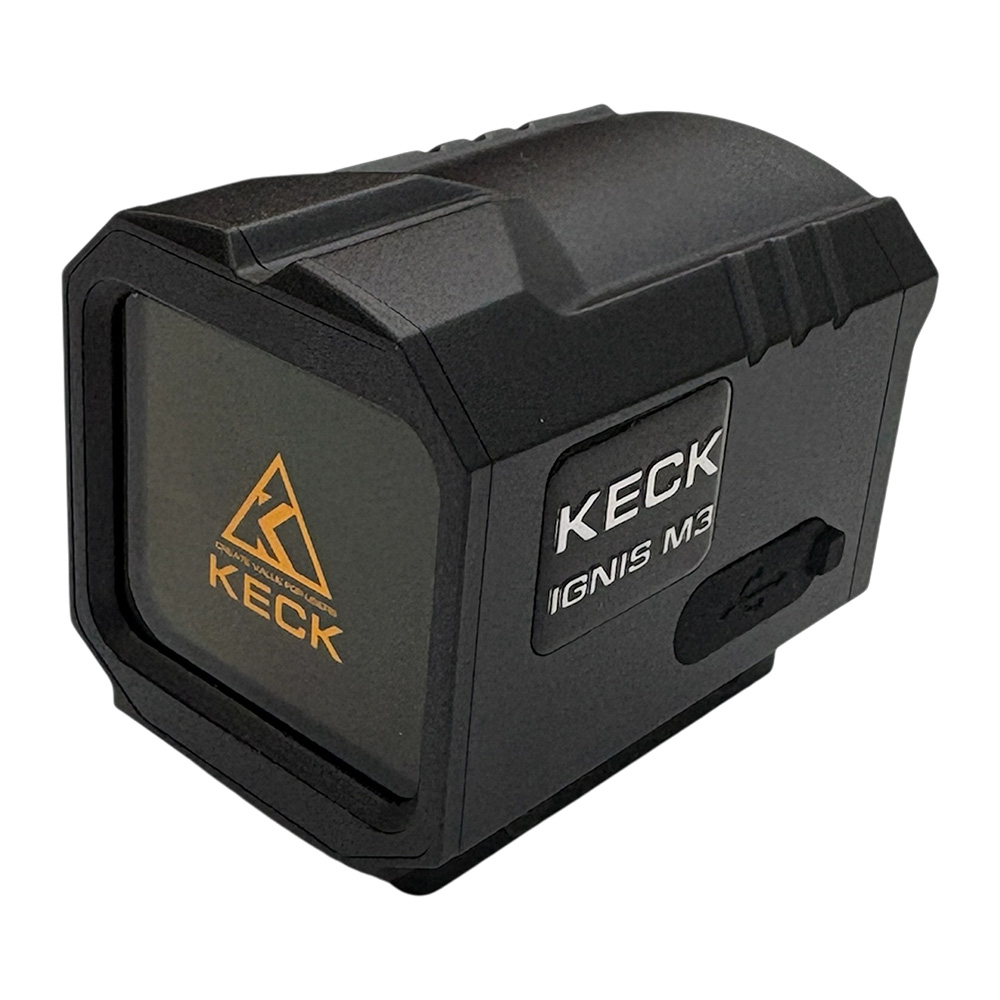

A rechargeable 16280 battery is specified with ≥4 hours of working time. USB Type-C accepts a 5 V external supply. The compact body is specified with 1000G shock resistance and a −20 °C to +50 °C operating range.
- Battery type
- Rechargeable 16280
- Working time
- ≥4 hours
- External power
- USB Type-C, 5 V
- Operating temperature
- −20 °C to +50 °C
- Weight
- 115 g
- Dimensions
- 51 × 45 × 45 mm
TECHNICAL SPECIFICATIONS
The complete specification.
IGNIS M3
Mini thermal imager
Thermal imaging & viewing
| Model | IGNIS M3 |
|---|---|
| Thermal detector resolution | 256 × 192 |
| Objective lens | 13 mm F0.9 |
| Pixel size | 12 μm |
| NETD | ≤35 mK |
| Display resolution | 466 × 466 |
| Field of view | 13.5° × 10.1° |
| Refresh rate | 60 Hz |
| Image modes | White Hot / Black Hot / Iron Red / Green Hot / Red Hot |
Power, construction & environment
| Battery type | Rechargeable 16280 |
|---|---|
| Working time | ≥4 hours |
| External power | USB Type-C, 5 V |
| Shock resistance | 1000G |
| Operating temperature | −20 °C to +50 °C |
| Weight | 115 g |
| Dimensions | 51 × 45 × 45 mm |
Detection and identification
Published distances for the subject sizes shown. Viewing conditions affect detection and identification.
| Subject | Subject size | Detection | Identification |
|---|---|---|---|
| Vehicle | 2.3 × 2.3 m | 1,200 m | 400 m |
| Personnel | 1.8 × 0.5 m | 300 m | 100 m |
| Deer | 1.7 × 0.4 m | 200 m | 80 m |
| Wild boar | 0.9 × 0.7 m | 170 m | 60 m |
