OPTICAL RIFLESCOPE

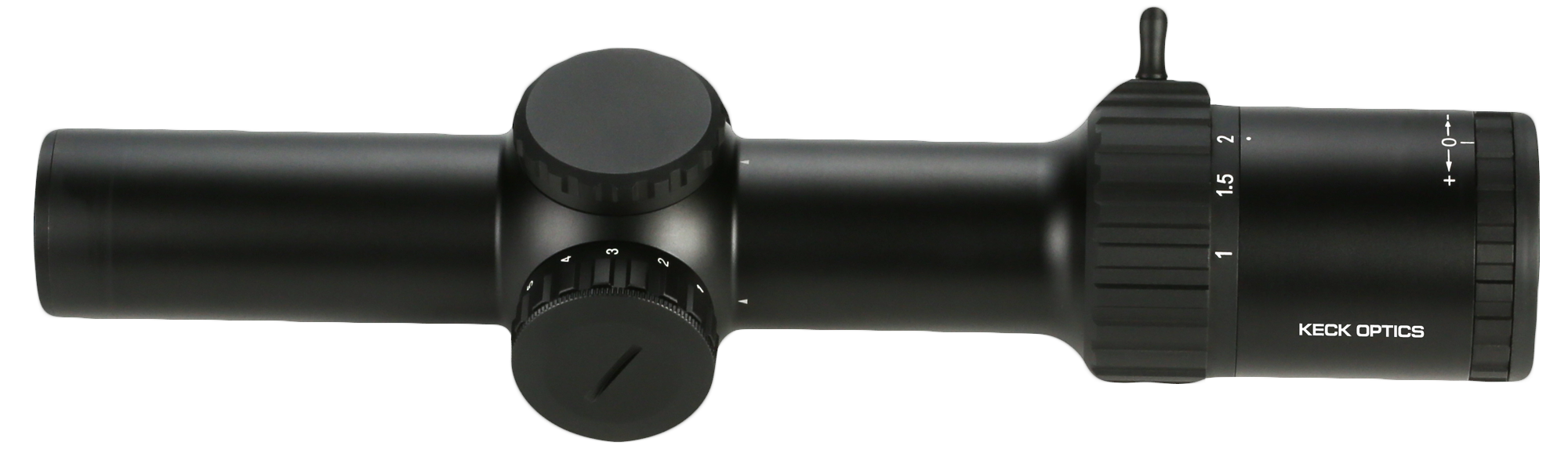

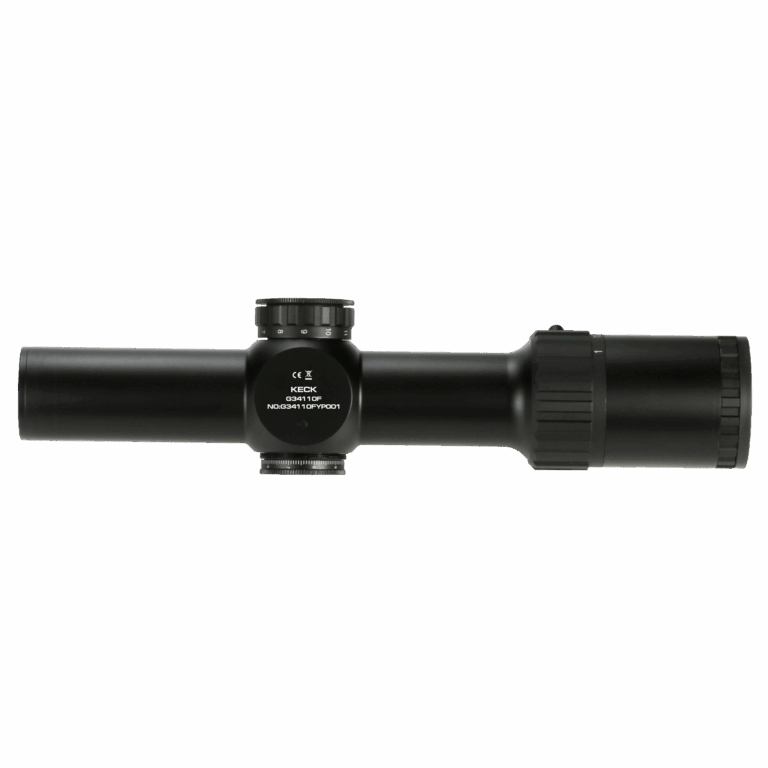

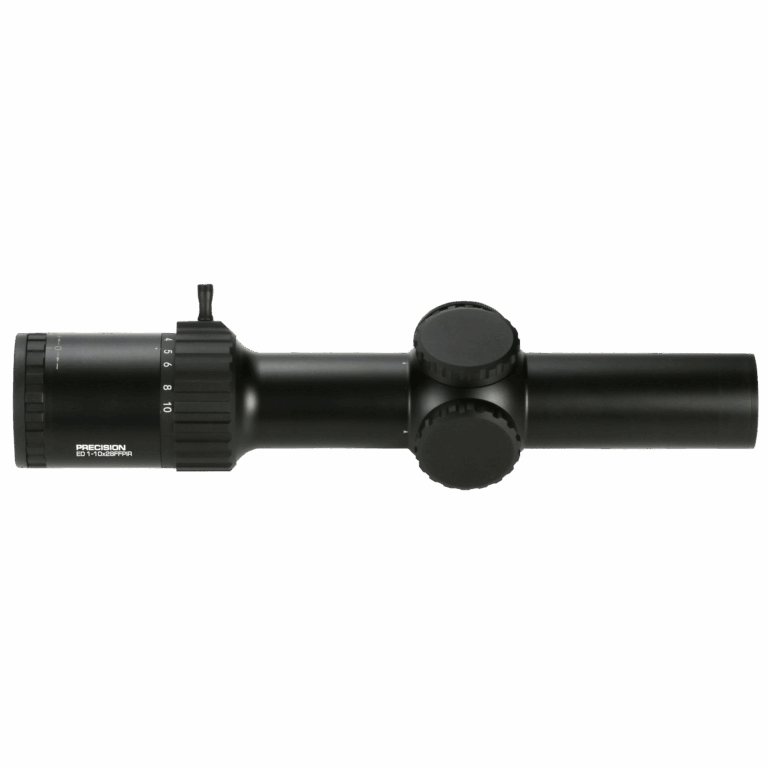

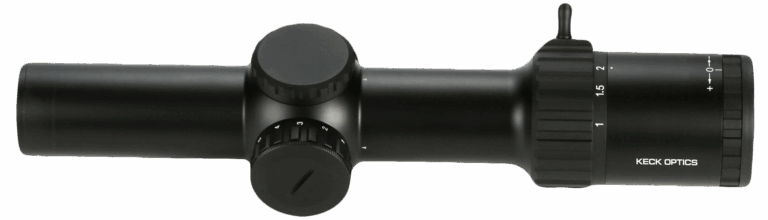

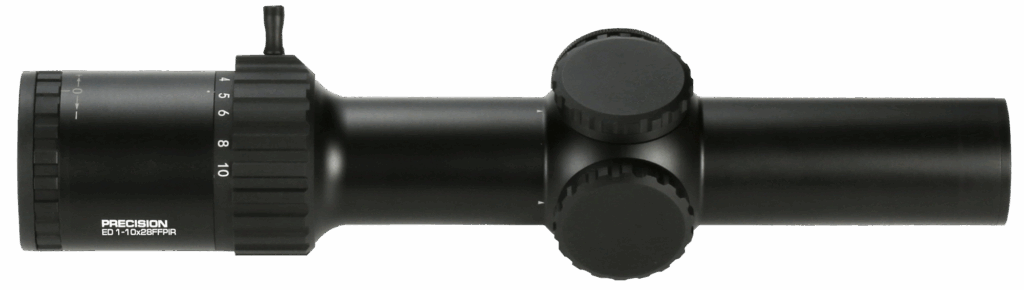

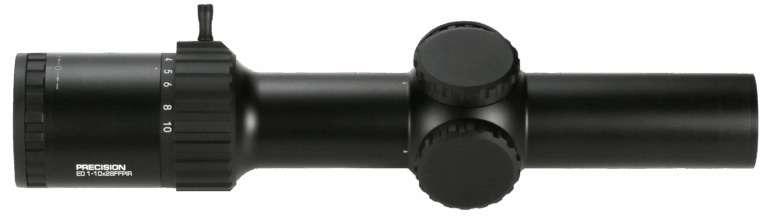

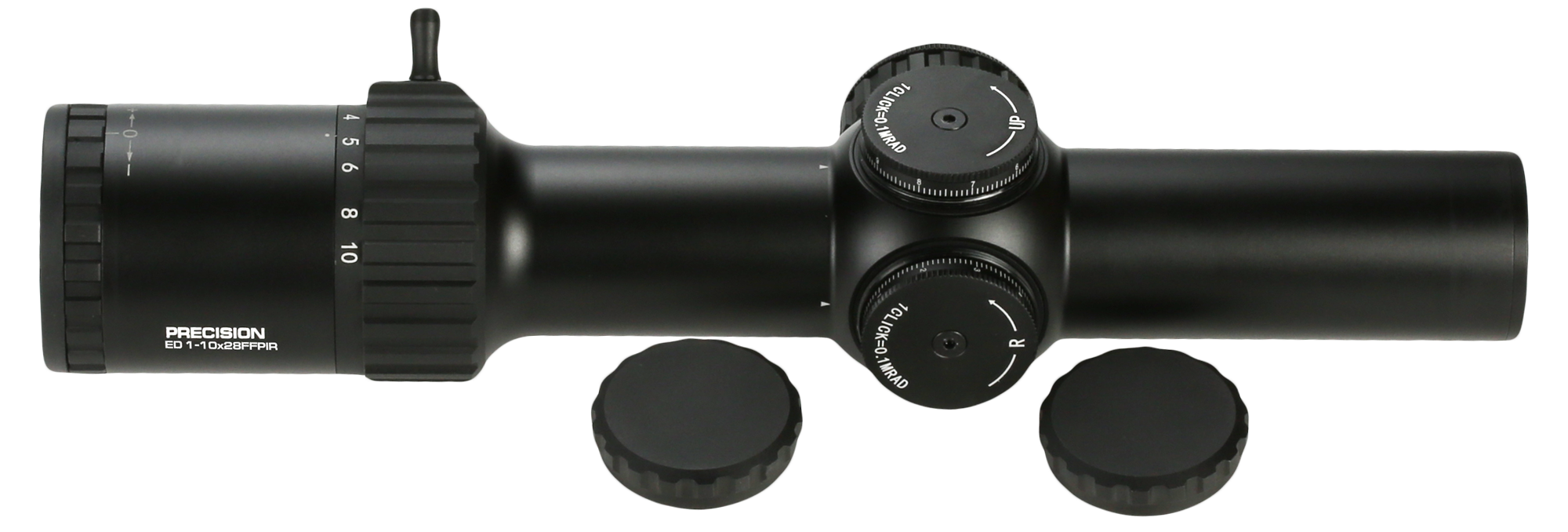

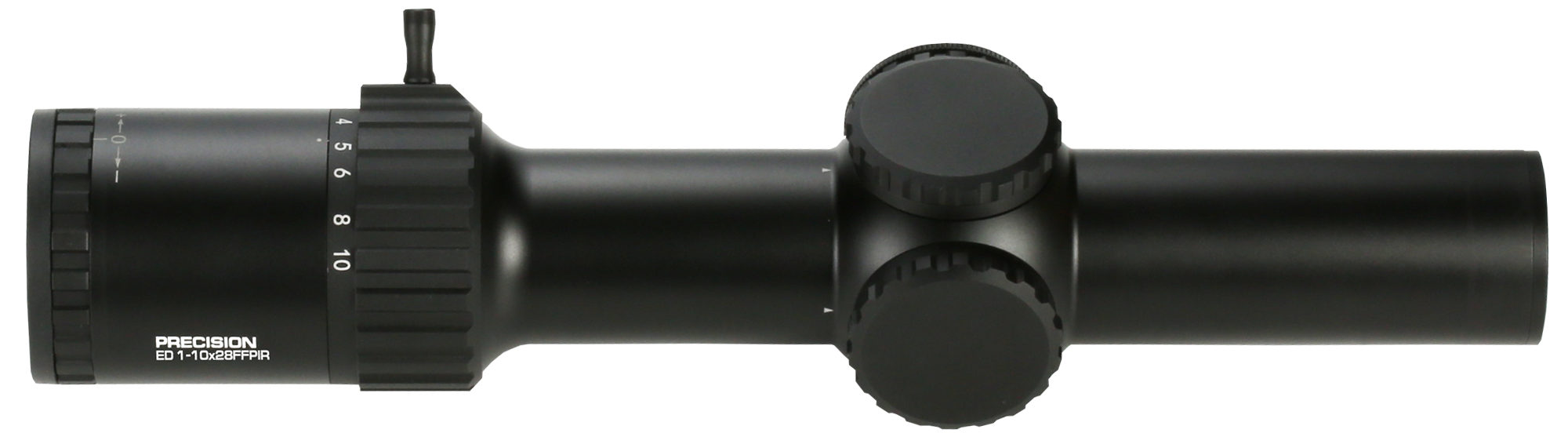

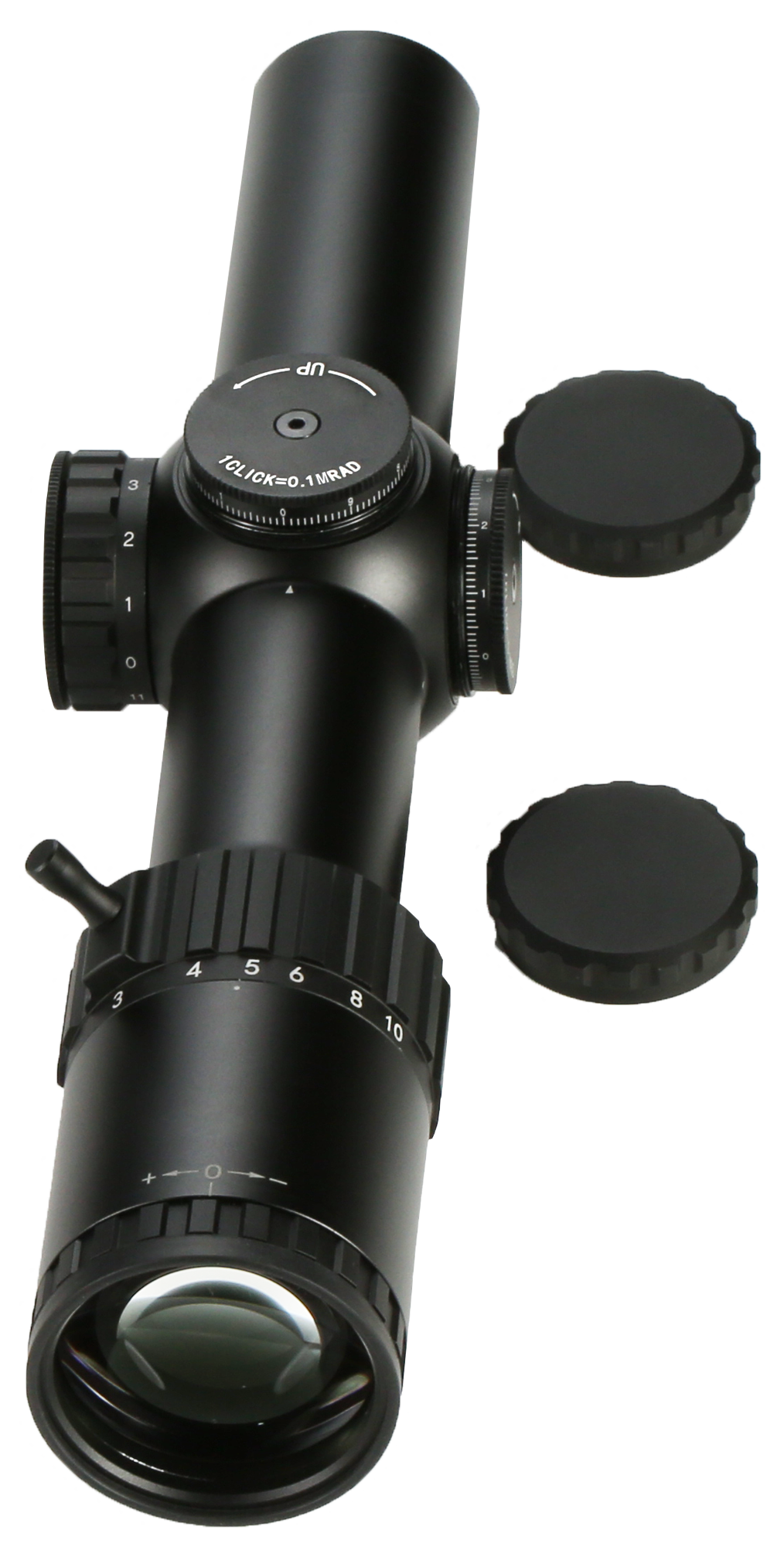

PRECISION ED 1–10×28
1–10×28 · FFP IR · 34 mm tube
Find your focus.
Keep the detail.
PRECISION ED 1–10×28 combines a 1–10× magnification range with an illuminated first focal plane reticle and a 34 mm tube.
As low as $1,190.00
01 / PRODUCT OVERVIEW
Optical clarity.
Considered control.
PRECISION ED 1–10×28 combines a 1–10× magnification range with an illuminated first focal plane reticle and a 34 mm tube.
Explore the optical system, reticle design and adjustment specifications of this model.
Discuss this modelOPTICAL SYSTEM
The view starts with the optics.
The fully multi-coated lens system reduces surface reflections and supports a bright, clear image.
- Magnification
- 1-10×
- Lens coatings
- fully green multi coated
- Field of view
- 22°-2.2°
- Eye Relief
- 3.74"(95 mm)

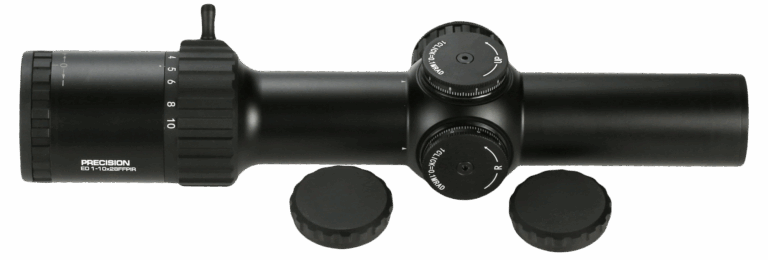

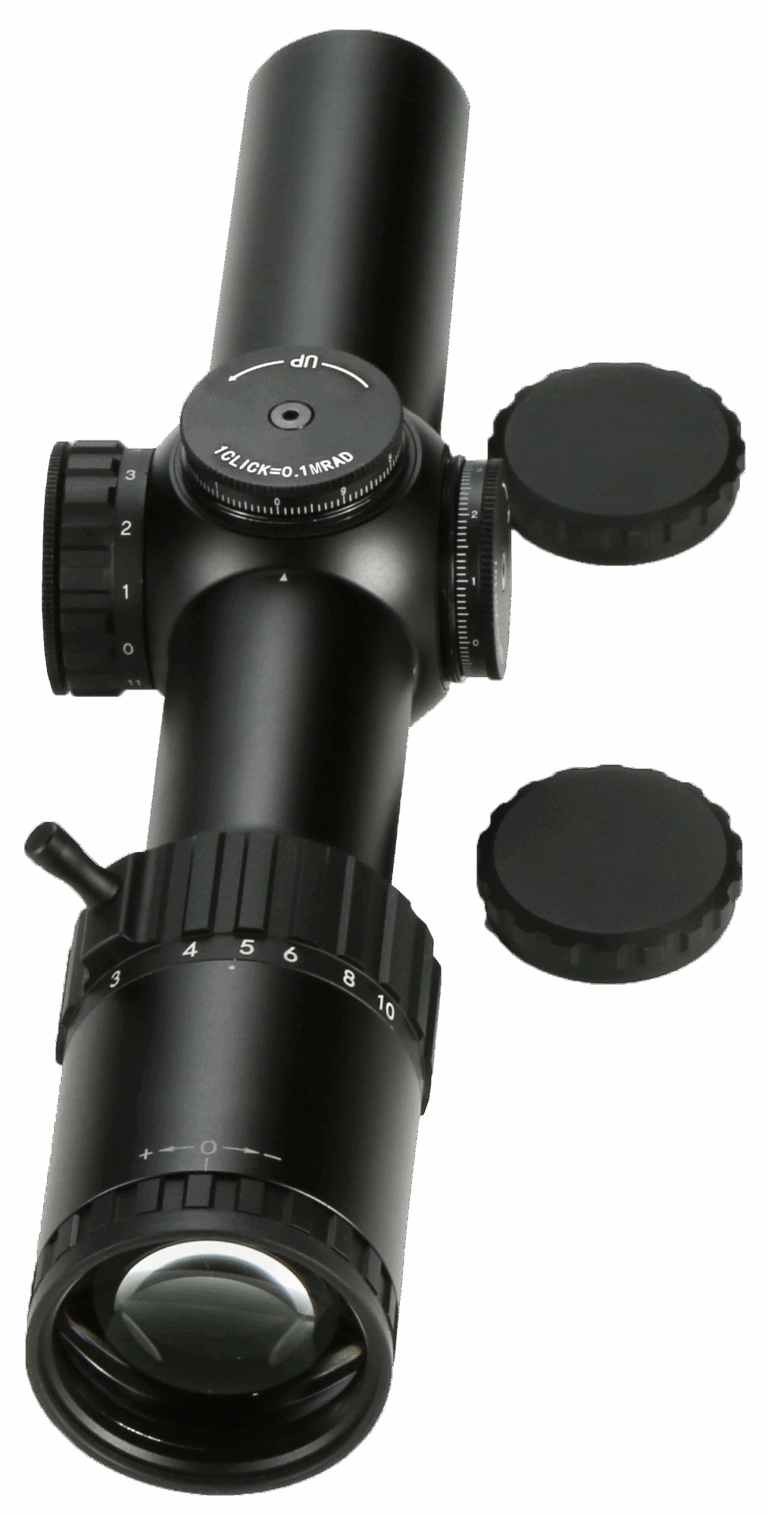

RETICLE & ADJUSTMENT
A defined reference. Measured adjustment.
The reticle changes apparent size with magnification, preserving its relationship to the observed image.
- Reticle type
- Glass Reticle
- Diopter Adjustment
- ±2.5
- Click value
- 0.1MRAD
- Parallax adjustment
- 100yds
BODY & ENVIRONMENT
The structure behind the optical system.
The 34 mm tube is constructed from T6063 aluminium alloy. Nitrogen filling helps limit internal fogging when temperatures change.
- Tube diameter
- 34 mm
- Exterior Finish
- Matte Black
- Length
- 261 mm
- Body material
- T6063 aluminium alloy
- Nitrogen filled
- Yes
- Water resistance
- IPX7
TECHNICAL SPECIFICATIONS
The complete specification.
PRECISION ED 1–10×28
1–10×28 · FFP IR · 34 mm tube
Optics & viewing
| Model | G34110F |
|---|---|
| Magnification | 1-10× |
| Lens coatings | fully green multi coated |
| Ocular lens diameter | 41 mm |
| Field of view | 22°-2.2° |
| Exit Pupil | 8 mm - 2.8 mm |
| Eye Relief | 3.74"(95 mm) |
Construction & environment
| Tube diameter | 34 mm |
|---|---|
| Exterior Finish | Matte Black |
| Mounting Length | 140 mm |
| Length | 261 mm |
| Body material | T6063 aluminium alloy |
| Nitrogen filled | Yes |
| Water resistance | IPX7 |
Reticle & controls
| Reticle type | Glass Reticle |
|---|---|
| Diopter Adjustment | ±2.5 |
| Click value | 0.1MRAD |
| Max. elevation adjustment range (MOA) | ±70MOA |
| Max. windage adjustment range (MOA) | ±70MOA |
| Parallax adjustment | 100yds |
KECK / QUALITY ASSURANCE
Quality Assurance: Lifetime warranty applies to manufacturing defects
SUPPLIED WITH THE PRODUCT
In the box.
- Riflescope
- Instruction manual
- Sunshade
- Lens cleaning cloth
- Batteries
- Mounting rings
