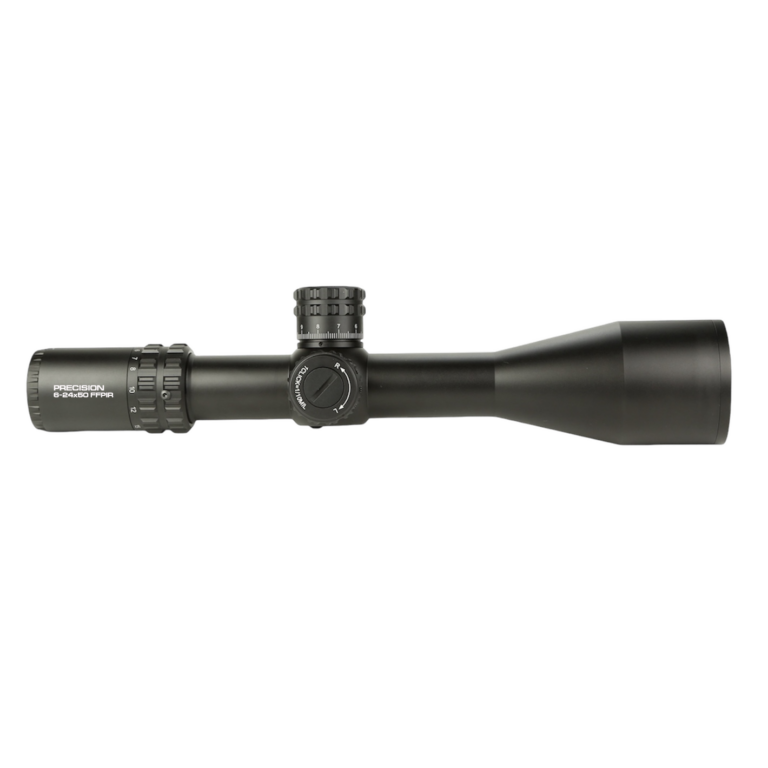

OPTICAL RIFLESCOPE
PRECISION 6–24×50
6–24×50 · FFP IR · 30 mm tube
Find your focus.
Keep the detail.
PRECISION 6–24×50 combines a 6–24× magnification range with an illuminated first focal plane reticle and a 30 mm tube.
As low as $799.00
01 / PRODUCT OVERVIEW
Optical clarity.
Considered control.
PRECISION 6–24×50 combines a 6–24× magnification range with an illuminated first focal plane reticle and a 30 mm tube.
Explore the optical system, reticle design and adjustment specifications of this model.
Discuss this modelOPTICAL SYSTEM
The view starts with the optics.
The fully multi-coated lens system reduces surface reflections and supports a bright, clear image.
- Magnification
- 6-24×
- Lens coatings
- fully green multi coated
- Field of view
- 18.3-4.6 feet (3.5°-0.86°)
- Eye Relief
- 4.13"- 3.93", (105 mm-100 mm)
- Objective lens diameter
- 50 mm
RETICLE & ADJUSTMENT
A defined reference. Measured adjustment.
The reticle changes apparent size with magnification, preserving its relationship to the observed image.
- Reticle type
- Glass Reticle
- Diopter Adjustment
- ± 2.0
- Click value
- 1/10 MIL
- Parallax adjustment
- 10yds-∞
BODY & ENVIRONMENT
The structure behind the optical system.
The 30 mm tube is constructed from T6063 aluminium alloy. Nitrogen filling helps limit internal fogging when temperatures change.
- Tube diameter
- 30 mm
- Exterior Finish
- Matte Black
- Length
- 14.5", (369.0 mm)
- Body material
- T6063 aluminium alloy
- Nitrogen filled
- Yes
- Water resistance
- IPX7
TECHNICAL SPECIFICATIONS
The complete specification.
PRECISION 6–24×50
6–24×50 · FFP IR · 30 mm tube
Optics & viewing
| Model | 6-24×50 |
|---|---|
| Magnification | 6-24× |
| Lens coatings | fully green multi coated |
| Ocular lens diameter | 35 mm |
| Field of view | 18.3-4.6 feet (3.5°-0.86°) |
| Exit Pupil | 8.3 mm - 2.1 mm |
| Eye Relief | 4.13"- 3.93", (105 mm-100 mm) |
| Objective lens diameter | 50 mm |
Construction & environment
| Tube diameter | 30 mm |
|---|---|
| Exterior Finish | Matte Black |
| Mounting Length | 155 mm |
| Length | 14.5", (369.0 mm) |
| Body material | T6063 aluminium alloy |
| Nitrogen filled | Yes |
| Water resistance | IPX7 |
Reticle & controls
| Reticle type | Glass Reticle |
|---|---|
| Diopter Adjustment | ± 2.0 |
| Click value | 1/10 MIL |
| Max. elevation adjustment range (MOA) | ±25MOA |
| Max. windage adjustment range (MOA) | ±20MOA |
| Parallax adjustment | 10yds-∞ |
KECK / QUALITY ASSURANCE
Quality Assurance: Lifetime warranty applies to manufacturing defects
SUPPLIED WITH THE PRODUCT
In the box.
- Riflescope
- Instruction manual
- Sunshade
- Lens cleaning cloth
- Batteries
- Mounting rings

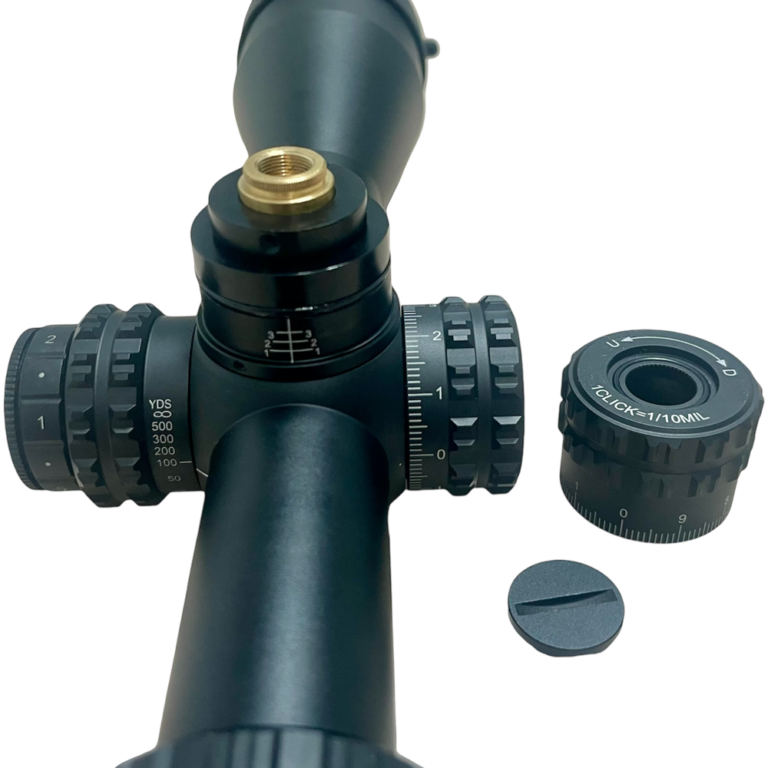

PRODUCT DETAILS
A closer look.
