RED DOT SIGHT
APEX G10
Red dot sight
A clear reference.
An uncluttered view.
APEX G10 pairs an illuminated 2 MOA aiming dot with adjustable brightness and motion activation in an aluminium housing.
As low as $399.00
AIMING REFERENCE
A defined point of reference.
ILLUMINATED DOT
2MOA
A 1× optical view with an illuminated aiming reference.
Daylight settings
Night-vision settings
BRIGHTNESS & ADJUSTMENT
Select dot brightness to suit the viewing conditions.
- Click value
- 1/2 MOA
MOTION & POWER
Motion-aware power.
Motion activation wakes the sight from its sleep state when movement is detected. Brightness selection and operating conditions affect battery duration.
BATTERY LIFE
Up to 400 hours on highest setting. Up to 50,000 hours on lower settings.
Duration varies with brightness and operating conditions.
CONSTRUCTION
The housing behind the sight.
The 6061-T6 aluminium housing is specified with IP67 ingress protection. Model-specific shock resistance and operating temperatures are listed below.
- Housing Material
- Aircraft Grade Aluminum 6061T6
- Ingress protection
- IP67
- Shock resistance
- 1200g
- Operating temperature
- -30°C to +60°C
TECHNICAL SPECIFICATIONS
The complete specification.
APEX G10
Red dot sight
Optics & viewing
| Magnification | 1× |
|---|---|
| Exit Pupil Dia | 22 |
| Dot size | 2MOA |
Reticle & controls
| Parallax setting | 100YDS / 1' |
|---|---|
| Click value | 1/2 MOA |
| Windage Elevation (Up Down) | 〉140MOA |
| Windage Elevation (Right Left) | 〉140MOA |
| Brightness settings | 2(NV)+10 |
| Motion activation | Yes |
Construction & environment
| Housing Material | Aircraft Grade Aluminum 6061T6 |
|---|---|
| Ingress protection | IP67 |
| Shock resistance | 1200g |
| Operating temperature | -30°C to +60°C |
Power & connectivity
| Battery life | Up to 400 hours on highest setting. Up to 50,000 hours on lower settings. |
|---|

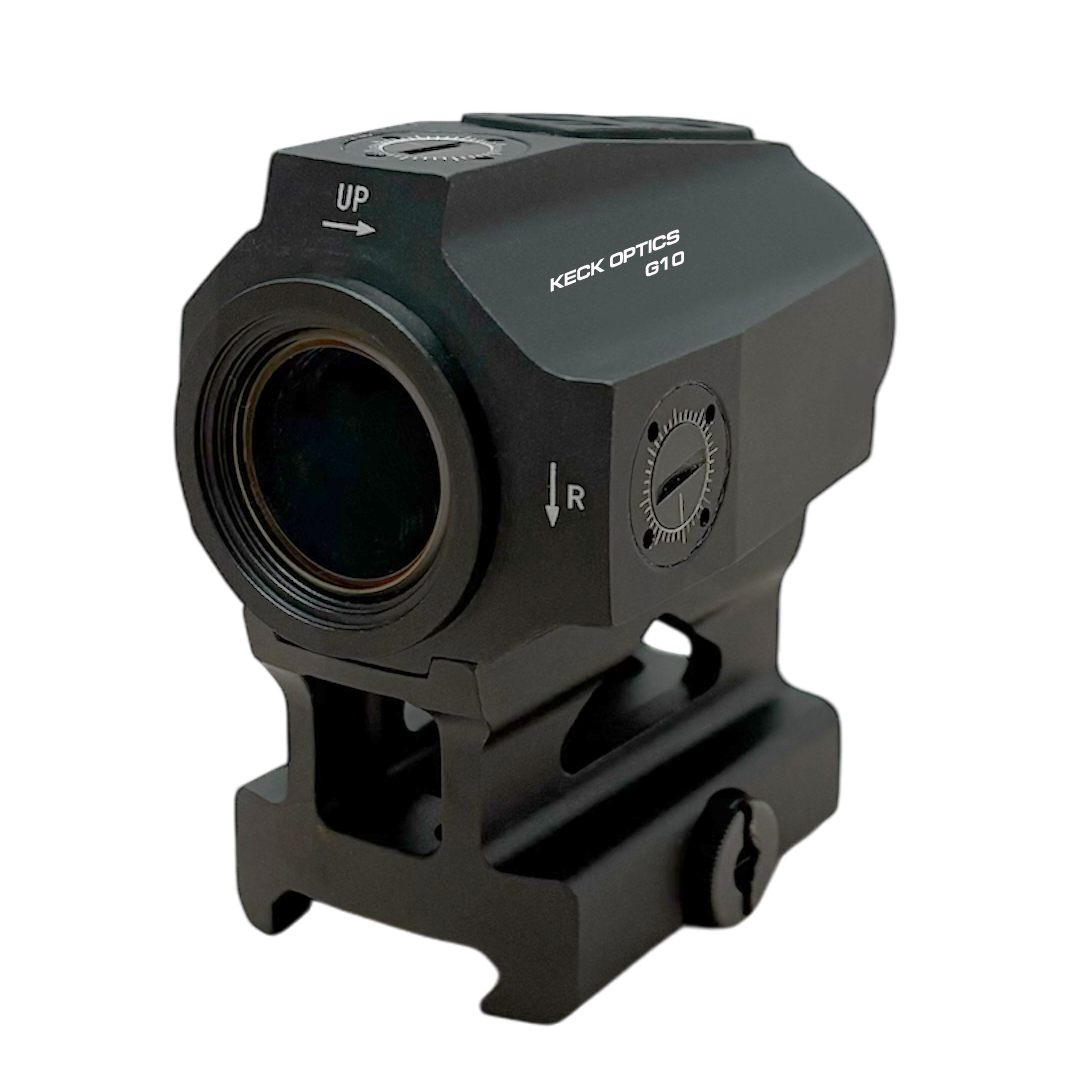

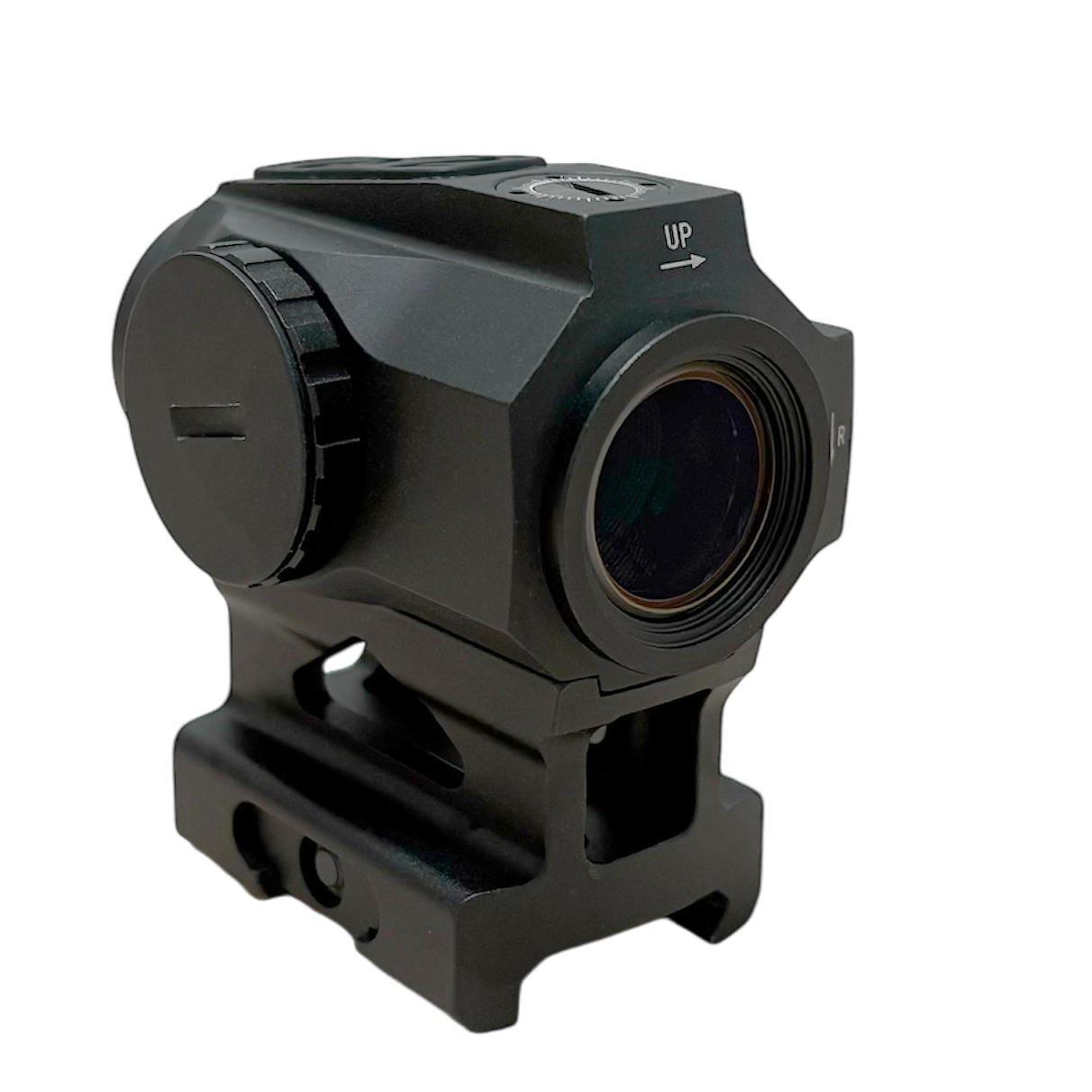

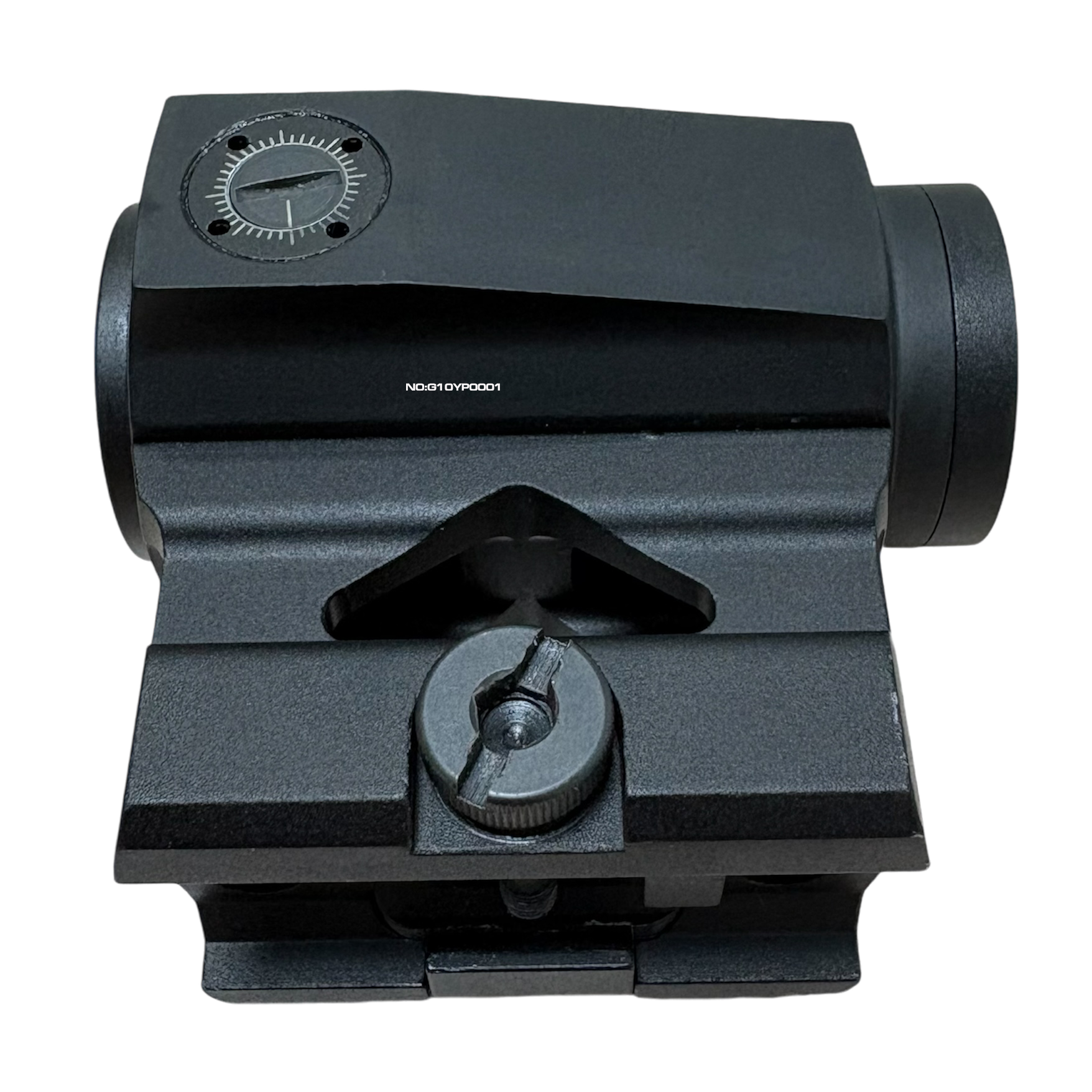

PRODUCT DETAILS
A closer look.
EXPLORE THE COLLECTION
Compare related configurations.
Explore the collections containing APEX G10 and compare the specifications of related KECK products.
