OPTICAL RIFLESCOPE
BREEZE 4–16×44
4–16×44 · SFP IR · 30 mm tube
Find your focus.
Keep the detail.
BREEZE 4–16×44 combines a 4–16× magnification range with an illuminated second focal plane reticle and a 30 mm tube.
As low as $499.00
01 / PRODUCT OVERVIEW
Optical clarity.
Considered control.
BREEZE 4–16×44 combines a 4–16× magnification range with an illuminated second focal plane reticle and a 30 mm tube.
Explore the optical system, reticle design and adjustment specifications of this model.
Discuss this modelOPTICAL SYSTEM
The view starts with the optics.
The fully multi-coated lens system reduces surface reflections and supports a bright, clear image.
- Magnification
- 4-16×
- Lens coatings
- fully green multi coated
- Field of view
- 26.2-6.55 feet (5°-1.25°)
- Eye Relief
- 3.54"- 3.35", (90 mm-85 mm)
- Objective lens diameter
- 44 mm

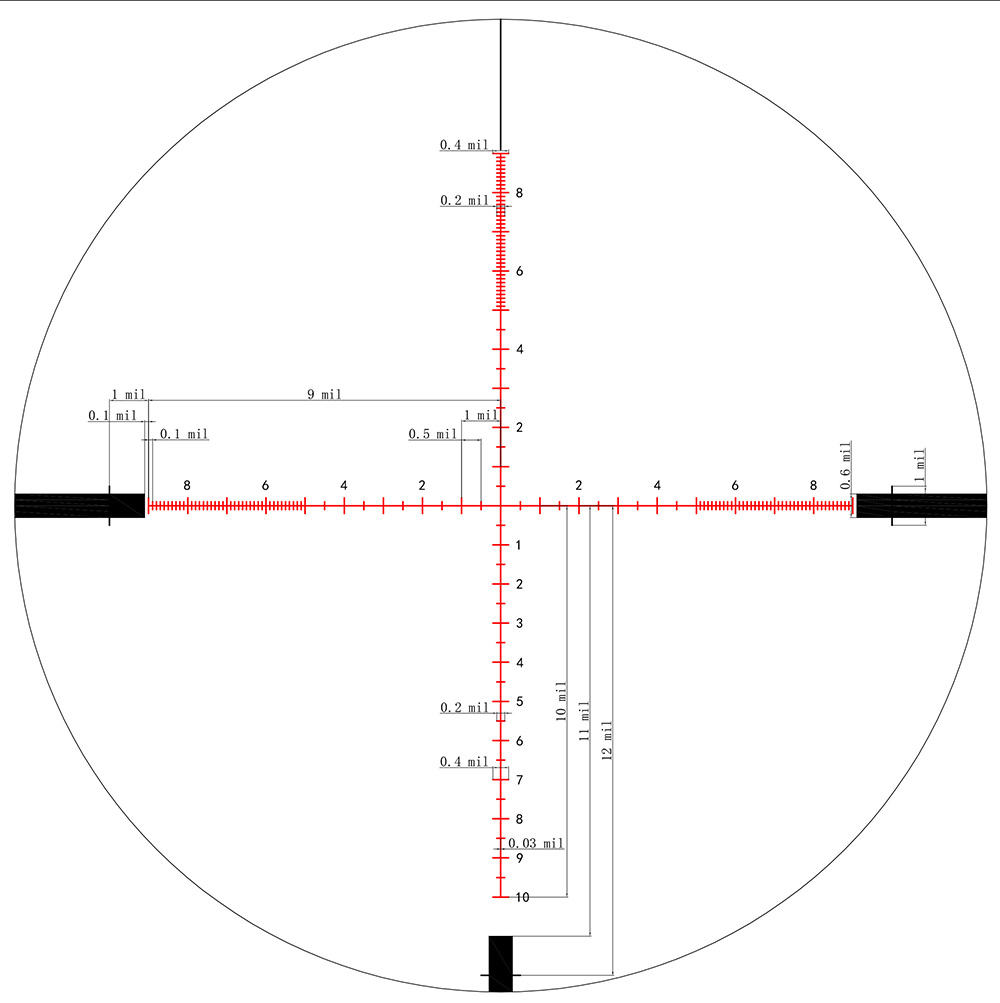

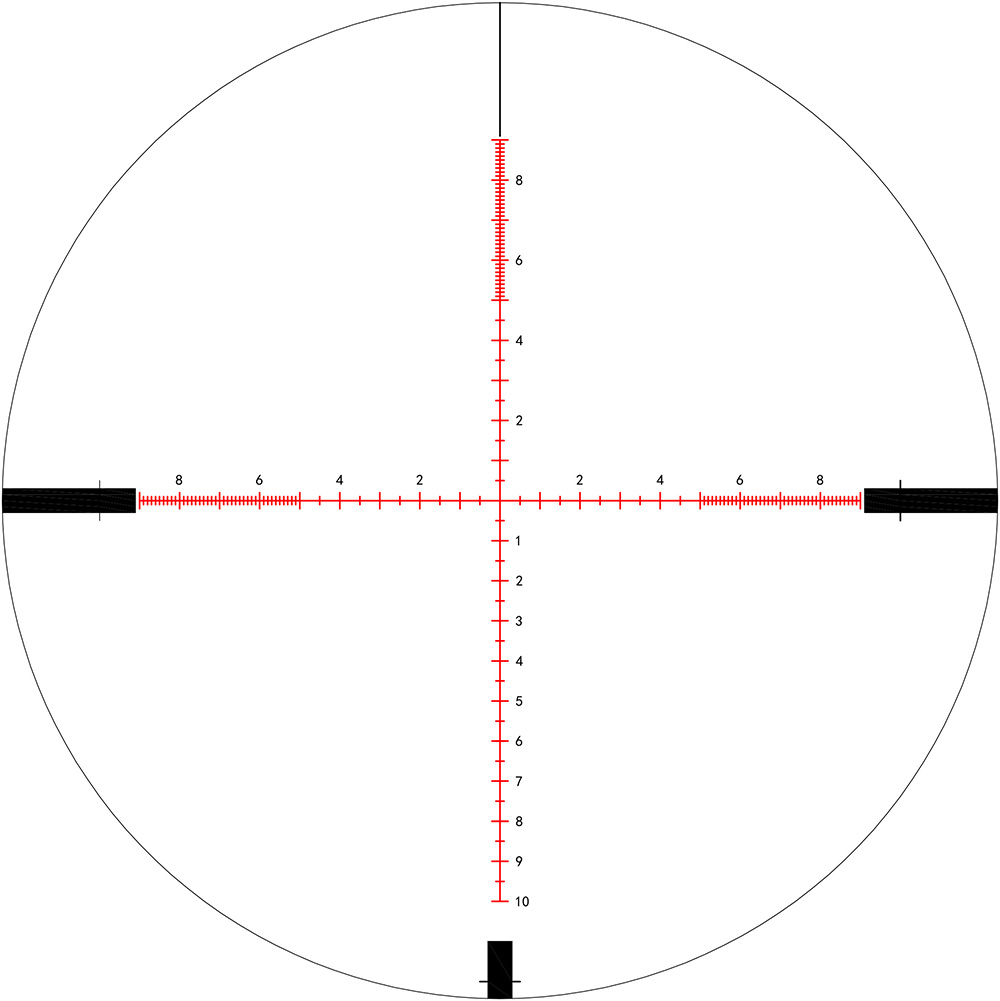

RETICLE & ADJUSTMENT
A defined reference. Measured adjustment.
The reticle retains its apparent size as magnification changes.
- Reticle type
- Glass Reticle
- Diopter Adjustment
- ±2.0
- Click value
- 1/10 MIL
- Parallax adjustment
- 10yds-∞
BODY & ENVIRONMENT
The structure behind the optical system.
The 30 mm tube is constructed from T6063 aluminium alloy. Nitrogen filling helps limit internal fogging when temperatures change.
- Tube diameter
- 30 mm
- Exterior Finish
- Matte Black
- Length
- 10.6", (270 mm)
- Body material
- T6063 aluminium alloy
- Nitrogen filled
- Yes
- Water resistance
- IPX7
TECHNICAL SPECIFICATIONS
The complete specification.
BREEZE 4–16×44
4–16×44 · SFP IR · 30 mm tube
Optics & viewing
| Model | 4-16×44 (Compact) |
|---|---|
| Magnification | 4-16× |
| Lens coatings | fully green multi coated |
| Ocular lens diameter | 31 mm |
| Field of view | 26.2-6.55 feet (5°-1.25°) |
| Exit Pupil | 11 mm - 2.75 mm |
| Eye Relief | 3.54"- 3.35", (90 mm-85 mm) |
| Objective lens diameter | 44 mm |
Construction & environment
| Tube diameter | 30 mm |
|---|---|
| Exterior Finish | Matte Black |
| Mounting Length | 106 mm |
| Length | 10.6", (270 mm) |
| Body material | T6063 aluminium alloy |
| Nitrogen filled | Yes |
| Water resistance | IPX7 |
Reticle & controls
| Reticle type | Glass Reticle |
|---|---|
| Diopter Adjustment | ±2.0 |
| Click value | 1/10 MIL |
| Max. elevation adjustment range (MOA) | ±30MOA |
| Max. windage adjustment range (MOA) | ±30MOA |
| Parallax adjustment | 10yds-∞ |
KECK / QUALITY ASSURANCE
Quality Assurance: Lifetime warranty applies to manufacturing defects
SUPPLIED WITH THE PRODUCT
In the box.
- Riflescope
- Instruction manual
- Sunshade
- Lens cleaning cloth
- Batteries
- Mounting rings
PRODUCT DETAILS
A closer look.
