Features
Aircraft Grade T6063
Aircraft-grade T6063 aluminum, single-piece construction with anodized finish for extreme durability.Etched illuminated glass reticle,IPX7 waterproof rating,Nitrogen-filled for fog resistance 5 year warranty
Fog Resistant
The Keck rifle scope uses nitrogen purging technology to prevent internal fogging. By filling the scope with nitrogen, moisture in the air is displaced, preventing internal fog formation due to temperature changes. This design ensures a clear view in various environmental conditions, enhancing shooting accuracy and reliability.
Shock Resistant
At 100 yards, after 2500 rounds of 7.62x51mm live fire, the deviation was less than 2 MOA with no noticeable shift in the aiming point. Despite the strong recoil, the lenses and internal optical components remained intact, with no damage or displacement, and the optical clarity and brightness were unaffected. The external protection and internal mounting systems showed no loosening or damage, ensuring long-term aiming stability.
Water Resistant
Keck scope features IPX7 waterproof protection, allowing it to be submerged in water up to 1 meter deep for up to 30 minutes without damage. This level of protection ensures reliable performance in harsh weather or humid environments, meeting the demands of outdoor use.

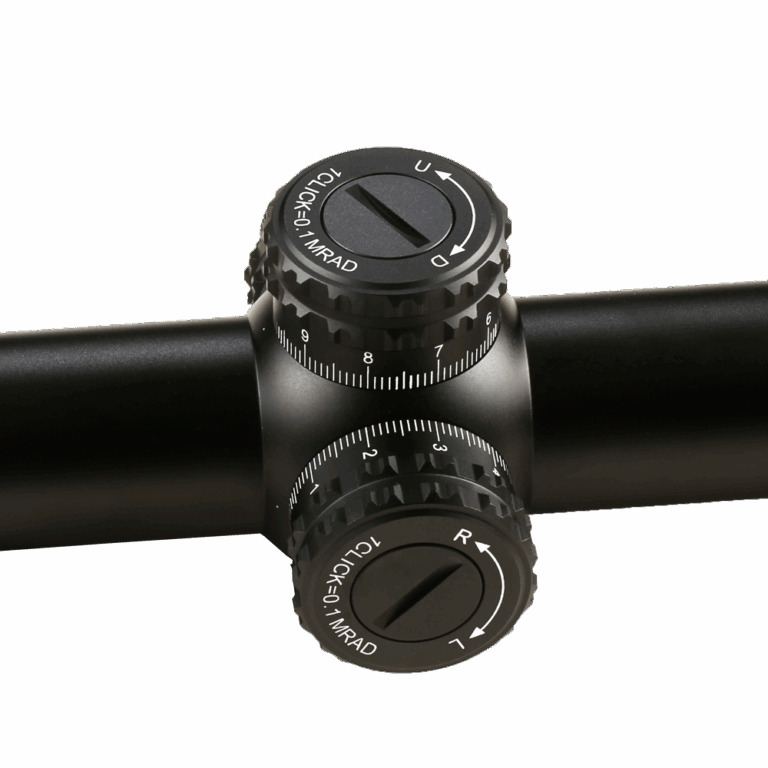

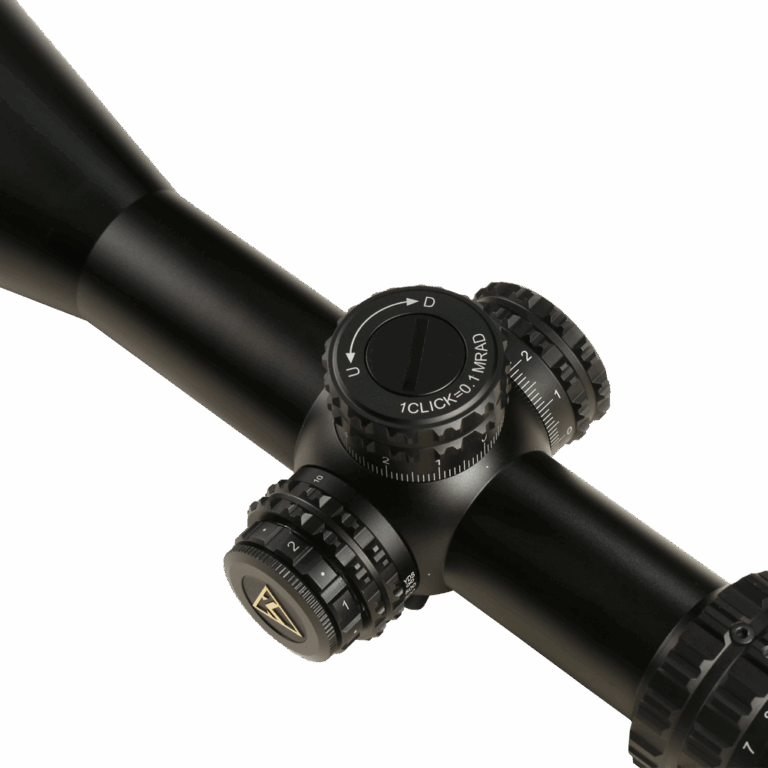

Keck Reticle and Turret Accuracy
The turret accuracy of this scope reaches up to 99%, ensuring precise adjustments with each click. This high-precision design allows users to calibrate their aim more accurately, enhancing shooting reliability and accuracy, especially in long-range shooting scenarios.
Anti-Reflective Lenses
Enhancing Light Transmission: Effectively reduces light loss on the lens surface, allowing more light to enter the scope, thereby improving image brightness. Reducing Glare and Reflection: In strong or backlit conditions, reflections on the lens surface may interfere with observation. Anti-reflective coating significantly reduces such reflections, preventing interference with aiming. Improving Image Quality: By minimizing reflected light and internal light scattering, anti-reflective lenses deliver sharper images with better contrast. Enhancing Performance in Low-Light Conditions: In low-light situations, such as dawn or dusk, anti-reflective lenses make better use of minimal light, providing clearer views of the target.
Technical
Specifications
Overview
The Keck ED4.5-27x56SFPIR scope is a high-performance optical device designed to meet the needs of shooting enthusiasts and professionals. Its main features and advantages include:
Key Features:
Magnification Range: Provides a 4.5x to 27x magnification range, suitable for close to long-range shooting.
Objective Lens Diameter: With a large 50mm objective lens, it ensures a bright and clear field of view in various lighting conditions.
Second Focal Plane (SFP) Design: The reticle is on the second focal plane, maintaining a constant size as magnification changes, allowing precise aiming at any magnification level.
Illuminated Reticle (IR): Equipped with an adjustable brightness reticle illumination system for clear aiming in low-light environments.
- 34mm Tube Diameter: Designed with a 34mm main tube, offering a wider adjustment range and enhanced durability to withstand various harsh environments.
HD Optical System: Uses high-quality optical glass and fully multi-coated lenses to provide exceptional image clarity and color fidelity, achieving over 90% light transmission.
Durable Construction: Made from rugged aircraft-grade aluminum, it is waterproof, fog-proof, and shockproof, suitable for all kinds of harsh environments.
Advantages:
Precision Aiming: High-precision turrets and reticle design ensure accuracy with each adjustment, improving shooting reliability and hit rates.
Quick Target Acquisition: At low magnification, it offers a wide field of view for fast target acquisition; at higher magnification, it is ideal for precise long-range shooting.
Versatile Use: Suitable for tactical shooting, sniping, long-range hunting, and competitive shooting, meeting the diverse needs of both military and civilian shooters.
Exceptional Precision and Reliability
KECK rifle scopes are crafted from aerospace-grade T6063 aluminum, providing outstanding strength, durability, and structural stability. The one-piece tube design features IPX7 waterproofing and can withstand impacts up to 1000G, ensuring reliable performance even in the harshest environments.
Equipped with ED glass and an etched illuminated reticle, the scope delivers 91% light transmission, producing clear, high-contrast images. Advanced multi-layer lens coatings enhance brightness and color fidelity, enabling precise target identification.
The laser-engraved adjustment scales allow for fast and accurate target corrections, while the nitrogen-filled, fog-proof design ensures a clear view under all weather conditions.
Engineered for long-range hunting (300–800 meters), PRS precision shooting (600–1500 meters), and ELR (Extra Long Range) applications, KECK scopes provide professional shooters with the perfect combination of accuracy and durability.
Each unit comes with a 5-year warranty (covering manufacturing defects only), reflecting KECK’s unwavering commitment to exceptional quality.
Included in the box:
- Keck ED4.5-27x56SFPIR Rifle Scope
- Operation manual
- Sun visor
- Lens cleaning cloth
- Mounting bracket (Ring)
PDF：
Second Focal Plane
Magnification: ED4.5-27×56
Scope Tube Diameter: 34mm
Lens Coating: fully green multi coated
Reticle Type (Etched / Wire): reticle
Ocular Lens Diameter: 38mm
Objective Lens Diameter: 56mm
Exterior Finish: Matte Black
Mounting Length: 200mm
Objective/Field of View/（100yds）: 3.43°-0.57°
Exit Pupil: 8mm – 1.33mmEye Relief: 3.78″- 3.74″,( 96mm-95mm）
Diopter Adjustment: ±2.5
Adjustment Click Value: 0.1MRAD
Max. elevation adjustment range (MIL): 23.26MIL
Max. windage adjustment range (MIL): 23.26MIL
Parallax correction(yds): 10yds-∞
Length: 402mm
